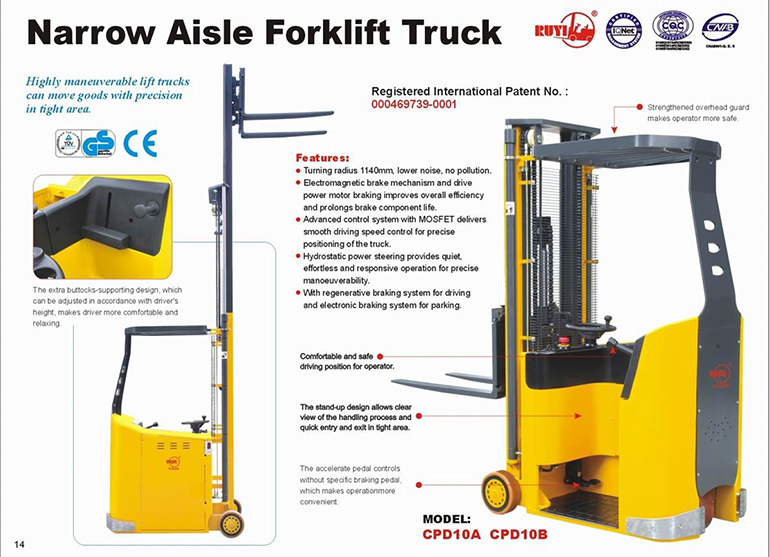

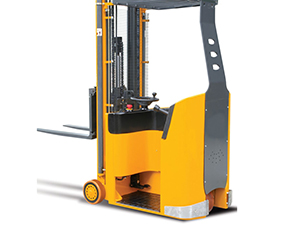

CPD10A CPD10B Narrow Aisle Forklift
MODEL:CPD10A CPD10B
Advantages
Advanced AC control system with MOSFET delivers smooth driving speed control for precise.
Small turning radius,easy and smart to operate.
Lean-on compartment offer comfortable and safe driving position,reducing operator's fatigue.
With regenerative braking system for driving and electronic braking system for parking.
Low battery Protection setting prolongs service life in reversing mode and reduce the brake pedal using and reduce operatot efforts.
With deadman switch on floor to cut off the power when operator leave the from cab.
Lifting cylinders on the both of mast provides best visibility.
The optional of full hydraulic steering system and electric power steering(EPS) offers follow advantages
Steering wheel automatic reset.
Travelling speed automatically slow down when steering.
Show the turning angles on the display.
Turning radius 1140mm,lower noise,no pollution.
Electromagnetic brake mechanism and frive power motor braking improves overall effciency and prolongs brake component life.
Advancef control system with MOSFET delivers smooth driving speed control for percise positioning of the truck.
Hydrostatic power steering provides quiet,effortless and responsive operation for precise manoeuverability.
With regenerative braking system for driving and electronic braking system for parking.

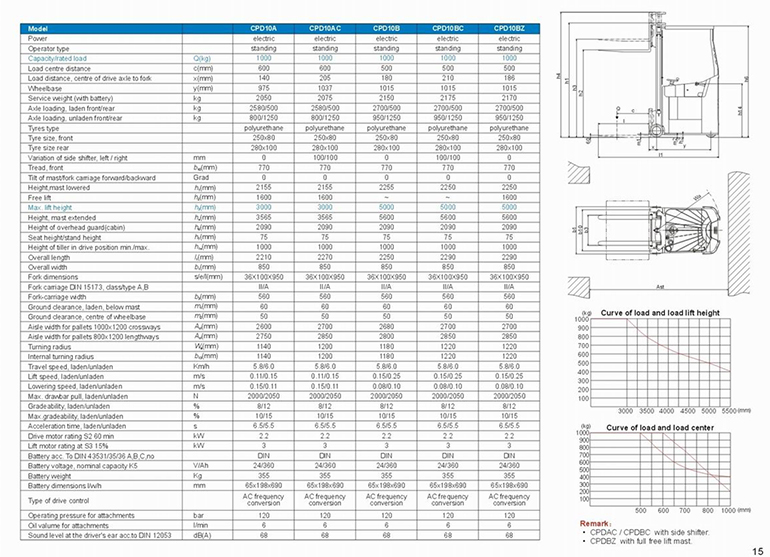

Specifications fo SINOLIFT CPD Narrow Aisle Forklift Truck | |||
Model | CPD10A | CPD10B | |
Power | electric | ||
Operator type | standing | ||
Capacity/rated load | Q(kg) | 1000 | |
Load centre distance | c(mm) | 600 | 500 |
Lift height | h3(mm) | 3000 | 5000 |
Load distance, centre of drive axle to fork | x(mm) | 140 | 180 |
Wheelbase | y(mm) | 975 | 1015 |
Service weight(with battery) | kg | 2050 | 2150 |
Axle loading, laden front/rear | kg | 2580/500 | 2700/500 |
Axle loading, unladen front/rear | kg | 800/1250 | 950/1250 |
Tyres type | polyurethane | ||
Tyre size, front | 250x80 | ||
Tyre size rear | 280x100 | ||
Variation of side shifter, left/right | mm | 0 | 0 |
Tread,front | b10(mm) | 770 | |
Tilt of mast/fork carriage forward/backward | Grad | 0 | |
Height,mast lowered | h1(mm) | 2155 | 2255 |
Free lift | h2(mm) | 1600 | ~ |
Height, mast extended | h4(mm) | 3565 | 5600 |
Height of overhead guard(cabin) | h6(mm) | 2090 | |
Seat height/stand height | h7(mm) | 75 | |
Height of tiller in drive position min./max. | h14(mm) | 1000 | |
Overall length | l1(mm) | 2210 | 2250 |
Overall width | b1(mm) | 850 | |
Fork dimensions | s/e/l(mm) | 36/100/950 | |
Fork carriage DIN 15173,class/type A,B | II/A | ||
Fork-carriage width | b3(mm) | 560 | |
Ground clearance,laden,below mast | m1(mm) | 60 | |
Ground clearance,centre of wheelbase | m2(mm) | 50 | |
Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2600 | 2680 |
Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2750 | 2800 |
Turning radius | Wa(mm) | 1140 | 1180 |
Internal turning radius | b13(mm) | 1140 | 1180 |
Travel speed, laden/unladen | Km/h | 5.8/6.0 | |
Lift speed, laden/unladen | m/s | 0.11/0.15 | 0.15/0.25 |
Lowering speed, laden/unladen | m/s | 0.15/0.11 | 0.08/0.10 |
Max. drawbar pull, laden/unladen | N | 2000/2050 | |
Gradeability,laden/unladen | % | 8/12 | |
Max.gradeability,laden/unladen | % | 10/15 | |
Acceleration time,laden/unladen | s | 6.5/5.5 | |
Drive motor rating S2 60 min | kW | 2.2 | |
Lift motor rating at S3 15% | kW | 3 | |
Battery acc. To DIN 43531/35/36 A,B,C,no | DIN | ||
Battery voltage,nominal capacity K5 | V/Ah | 24/360 | |
Battery weight | Kg | 355 | |
Battery dimensions l/w/h | mm | 610x278x690 | |
Type of drive control | AC | ||
Operating pressure for attachments | bar | 120 | |
Oil valume for attachments | l/min | 6 | |
Sound level at the driver's ear acc.to DIN 12053 | dB(A) | 68 |
Sinolift reserves the right to make any changes or modifications of pictures and specifications without giving previous notice and without incurring any obligation.
