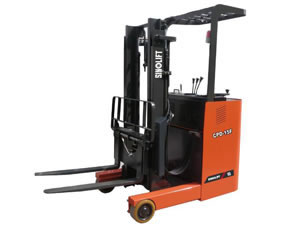

The CQD-F models reach trucks available with 1500, 2000 and 2500kg capacity feature a narrow chassis, 1120 mm, and has been designed for low to medium intense operations with lift heights up to 7200mm. The machines with AC drive technology focus productivity, driver ergonomics and safety.

Wide Vision mast, soft and comfortable back design.
Optional: EPS, Forklift attachment, Battery sideways exchange (For multi-shift operations, this system is based on roller bed for fast and easy battery changeovers.)
For more details and dimensions please contact us.

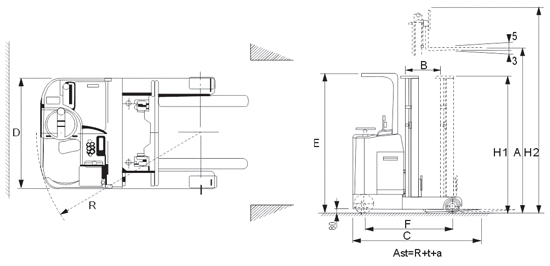

Model.		CQD15F-30	CQD20F-30	CQD25F-30
Load Capacity	kg	1500	2000	2500
Max.Lifting Height	mm	3000	3000	3000
Wheel Type		Polyurethane solid tire	Polyurethane solid tire	Polyurethane solid tire
Fork Size (LWT)	mm	107010035	107010045	107010045
Width of Forks (aptotic)	mm	662	780	780
Mast Forwarding Length	mm	560	685	685
Overall Length	mm	2266	2468	2468
Overall Width	mm	1098	1258	1258
Overall Height(mast closed)	mm	2320	2320	2320
Outside Turning Radius	mm	1625	1965	1965
Total Weight(with battery)	kg	2370	2960	2960
Driving Wheel	mm	diameter 343*108	dia 343*108	dia 343*108
Front Wheel	mm	dia 267*114	dia 267*114	dia 267*114
Balance Wheel	mm	dia 180*76	dia 180*76	dia 180*76
Battery	V/Ah	48/300	48/400	48/400
Charger	V/A	48/40	48/50	48/50
Driving Motor	kw	5.5AC	5.5AC	5.5AC
Lifting Motor	kw	6.3	7.5	7.5

High mast parameter

Mast	Full free	Lifting height	Lowered height of mast	Free lift	Loading capacity @ MAX. height
Mast	Full free	Lifting height	Lowered height of mast	height	CQD15	CQD20
Duplex	NO	3500mm	2370mm	0mm	1200kg	1600kg
Duplex	NO	4000mm	2620mm	0mm	1000kg	1300kg
Triplex	YES	5000mm	2340mm	1670mm	900kg	1100kg
	YES	5500mm	2450mm	1850mm	800kg	1000kg
	YES	6000mm	2680mm	2000mm	700kg	900kg
	YES	6500mm	2880mm	2200mm	600kg	800kg
	YES	7200mm	3090mm	2400mm	500kg	700kg
