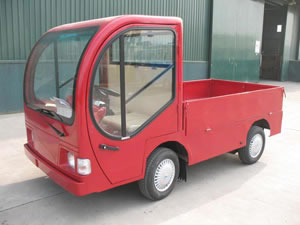

العربيةSH-BD-HA(B) electric burden carrier
Stanard Features
Chassis fabricated from rolled channels suitably gusseted,boxed and reinforced with lplates to give adequate strength.
Leaf spring suspensions with shock absorbers on front and rear axles ensures reduced road shocks to both driver and load carried.
Heavy duty automotive differential rear drive with telescopic universal point..
Compact motor and gear box assembly mounted on anti- vibration pads.
Large diameter hydraulic and parking brakes.
Heavy duty swiveling steering axle ensures all wheel contact on rough road.
Stepless electronic MOSFET speed control for jerkless transmission and increased battery efficiency.
Low slung step on foot-board with ample leg room and board cushion seats for driver comfort.
All controls ergonomically positioned for ease of driving.
Slide out battery units for quick and easy battery changing.
Snap open covers for easy inspection and maintainance of battery.
Battery discharge indicator provided to ensure pre- emption of over discharge thus protecting the battery and ensuring long productive life of battery
| Model | BD10-HA1 | BD10-HA2 | BD15-HB1 | BD20-HB1 |
| Voltage | 48V | 48V | 48V | 72V |
| Motor | 3KW | 5KW | 5KW | 5KW |
| Passenger capacity | 2 | 2 | 2 | 2 |
| Range (loaded) (km) | 60 | 60 | 60 | 70 |
| Max. speed (km/h) | 35 | 40 | 40 | 40 |
| Minimum turning radius (m) | 4.3 | 4.3 | 4.3 | 4.5 |
| Overall dimension (mm) | 3415X1390X1200 | 3415X1390X1200 | 3475X1390X1300 | 4200x1560x1910 |
| Cargo bed dimension (mm) | 2110X1370X260 | 2110X1370X260 | 2240X1370X260 | 2770x1445x330 |
| Max. climbing ability (loaded) | 20% | 20% | 20% | 15% |
| Max. loading weight (kg) | 1000 | 1000 | 1500 | 2000 |
| tare weight (kg) | 1000 | 1000 | 1100 | 1500 |
