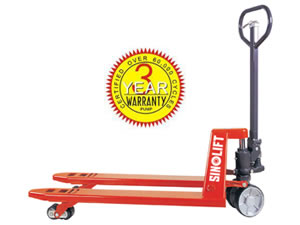

العربيةNP Hand Pallet Truck
Quality engineered for strength, dependability and long life. SINOLIFT's choice as the pallet jack on the market today. Standard models come with a standard capacity of 2500 Kg.
The hydraulic system on this pallet jack is the result of years of research and development, including a load limiter that prevents premature wear resulting from overloading. A special design of lowering valve permits gentle lowering of heavy loads. No moisture can get into the unit and it is leak proof.
Lifting - Neutral - Lowering. No foot pedal means extra safety. Neutral allows pumping at the most convenient angle to the operator and free handle movement when the truck is in motion. The handle returns automatically to the vertical position.
All Parts guranteed for a full year, except where used in Acidic or Alkali Environments.
Features Include:
Safety designed loop handle, includes neutral position, and fingertip release
Spring-o-matic handle self returns
215° pivot action maneuvers in compact area
One piece formed steel "C" channel tapered, reinforced forks
Leak-proof pump assures maintenance-free service
Hard chrome-plated ram and piston
Urethane seals and wipers
Large Steer wheels with "Ball Thrust" steering
Sealed ball bearings throughout
Bearings at all pivot points can be lubricated easily
Tapered fork ends and nylon rollers permit easy entry and exit of pallets
Nylon or Polyurethane wheels and load rollers available
Only 1 snap ring and 4 pins to remove the hydraulic unit
Painted quality safety color after anti-rust treatment
| 1, Standard Specification Data | ||||||||
| Model | Capacity | Fork Width | Fork Length | Min. Height | Max. Height | Steer wheel | Load Wheel | Weight |
| kg/lbs | mm/inch | mm/inch | mm/inch | mm/inch | (mm) | (mm) | kg/lbs | |
| W1 | L1 | H2 | H1 | A | B | |||
| NP15-48 | 1500/3300 | 460/18" | 810/32" | 80/3.15" | 200/7.9" | φ180*62 | φ78*100 (single) | 66/145 |
| NP15-49 | 460/18" | 980/38.5" | 70/154 | |||||
| NP15-58 | 520/20.5" | 810/32" | 66/145 | |||||
| NP15-59 | 520/20.5" | 980/38.5" | 70/154 | |||||
| NP15-510 | 520/20.5" | 1070/42" | 71/156 | |||||
| NP15-511 | 520/20.5" | 1150/43.3" | 73/160 | |||||
| NP15-610 | 600/23.5" | 1070/42" | 77/169 | |||||
| NP15-76 | 685/48" | 650/25.6" | 68/149 | |||||
| NP15-710 | 685/27" | 1070/42" | 76/167 | |||||
| NP15-712 | 685/27" | 1220/48" | 79/173 | |||||
| NP25-58 | 2500/5500 | 520/20.5" | 810/32" | 80/3.15" | 200/7.9" | φ180*62 | φ78*100 (single) or φ78*70 (tandem) | 67/147 |
| NP25-59 | 685/27" | 980/38.5" | 71/156 | |||||
| NP25-510 | 685/27" | 1070/42" | 72/158 | |||||
| NP25-511 | 520/20.5" | 1150/43.3" | 75/165 | |||||
| NP25-712 | 685/27" | 1220/48" | 80/176 | |||||
| NP30-510 | 3000/6600 | 520/20.5" | 1070/42" | 80/3.15" | 200/7.9" | φ180*62 | φ78*100 (single) or φ78*70 (tandem) | 84/184 |
| NP30-511 | 520/20.5" | 1150/43.3" | 90/198 | |||||
| NP30-712 | 685/27" | 1220/48" | 100/220 | |||||
| Remark 1, 2000kg/4400lbs,3500kg/7700lbs,5000kg/11000lbs capacity are also available, 2,Hand brake,food brake and parking brake is optional 3,Option: Polyurethane,Nylon or Rubber material wheels, Single load wheel or tandem load wheel; 4,Spercial size of width and length can be made according to customer's requirement. 5,All specifications and figures are subject to change withou notice for improvement. |
||||||||
