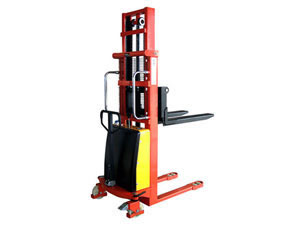

العربيةSPN semi-electric stacker
The product has passed the CE certification.
It is a half electric forklift for load and unload and short-distance transportation
The operation is very easy.
It is reliable. There is no noise and pollution.
The malfunction rate is low.
There are complete specifications for forks to meet the different demands of the customers.
| Model | SPN10 | SPN15 | SPN20 | |
| Capacity Q | Kg | 1000 | 1500 | 2000 |
| Min.fork height h2 | mm | 85 | 85 | 85 |
| Max.fork height h3 | mm | 1600/2500/3000 | 1600 | 1600 |
| Min.mast height h1 | mm | 1980/1830/2080 | 1980 | 1980 |
| Size of fork e*s | mm | 150/160x60 | 150/160x60 | 150/160x60 |
| Length of fork l | mm | 900/1100 | 900/1100 | 900/1100 |
| Width overall forks(Adjust/fixed)b5 | mm | 330~640/550 | 330~640/550 | 330~640/550 |
| Radius of gyration Wa | mm | 1240 | 1360 | 1360 |
| N.W. | kg | 396/443/466 | 500 | 500 |
| Fork rollers l | mm | Φ74x70 | Φ74x70 | Φ74x70 |
| Big wheel | mm | Φ180x50 | Φ180x50 | Φ180x50 |
| Battery V/Ah(5 h autonomy) | 12/150 | 12/150 | 12/150 | |
| Lifting motor power(kw) | 1.5 | 1.5 | 1.6 | |
| Conforms to EN1757-1 | ||||
| Much lighter and easier to handle and is made of high quality German steel to ensure stability and strength. |
