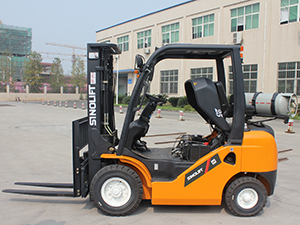

العربيةG Series 1.5-3.5T Internal Combustion Counterbalanced Forklift
G Series Internal combustion balance weight forklift
| New design of steering wheel. The diameter is reduced from 360mm to 300mm to minimize fatigue and maximize efficiency. |   01 | ||
| Multi-functional Switch Multi-functional light switch with automatic retract function. Electric direction change lever, conveniently and ergonomically placed for effortless forward and reverse selection. |   02 | ||
| The digital display is reliable, accurate and easy to read. |  03 | ||
| A large entry grip supports safe and easy access for the operator. |  04 | Modular plastic cover for improved maintenance access. |  05 |
| Premium cooling system. The aluminum radiator with tube lines provides increased cooling. it reduces the water temperature by 6-8C compared with traditional cooling systems. The redesigned counterweight and cooling system assists in improving longevity of engines |   06 | ||
| General | Manufacturer | G Series SINOLIFT 2.0T-3.5T Gasoline/LPG Forklift Specificaitons | |||||||
| Model | CPCD 15G-W1 | CPCD 18G-W1 | CPCD 20G-W1 | CPCD 25G-W1 | CPCD
30G-W1 CPCD 30G-Y3 CPCD 30G-M | CPCD
35G-W1 CPCD 35G-Y3 CPCD 35G-M | |||
| CPQD 15G-H1 | CPQD 18G-H1 | CPQD 20G-H1 | CPQD 25G-H2 | CPQD 30G-H2 | CPQD 35G-H2 | ||||
| CPYD 15G-H1 | CPYD 18G-H1 | CPYD 20G-H1 | CPYD 25G-H2 | CPQD 30G-R | CPQD 35G-R | ||||
| Power type | Diesel / Gasoline / LPG | ||||||||
| Rated capacity | kg | 1500 | 1750 | 2000 | 2500 | 3000 | 3500 | ||
| Load center | mm | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Dimension | Lift height H | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Free lift height H4 | mm | 162 | 162 | 140 | 140 | 145 | 145 | ||
| Fork size L*W*T | mm | 920*100 *40 | 920*100 *40 | 1070*120 *40 | 1070*120 *45 | 1070*125 *45 | 1075*130 *45 | ||
| Mast tilt angle α/β | deg | 6/11 | 6/11 | 6/12 | 6/12 | 6/12 | 6/12 | ||
| Front overhang X | mm | 408 | 408 | 484 | 489 | 494 | 500 | ||
| Overall dimension | Length to fork face L1 | mm | 2255 | 2255 | 2564 | 2634 | 2775 | 2814 | |
| Overall width B1 | mm | 1080 | 1080 | 1150 | 1150 | 1236 | 1236 | ||
| Mast lowered height H1 | mm | 1995 | 1995 | 2050 | 2050 | 2080 | 2230 | ||
| Mast extended height H3 | mm | 4042 | 4042 | 4040 | 4040 | 4273 | 4273 | ||
| Overhead guard height H2 | mm | 2100 | 2100 | 2150 | 2150 | 2180 | 2180 | ||
| Performance | Turning radius R | mm | 2070 | 2120 | 2220 | 2290 | 2400 | 2490 | |
| Travel speed (full load/no load) | km/h | 12/14 | 12/14 | 17/19 | 17/19 | 18/19 | 18/19 | ||
| Lift speed (full load/no load) | mm/sec | 460 | 485 | 470 | 470 | 430 | 400 | ||
| Max. Gradeability | % | 20 | 20 | 20 | 20 | 20 | 15 | ||
| Service weight | kg | 2740 | 3000 | 3550 | 3880 | 4380 | 4750 | ||
| Chassis | Tyre | Front | 6.50-10- 10PR | 6.50-10- 10PR | 7.00-12- 12PR | 7.00-12- 12PR | 28/9-12- 12PR | 28x9-15- 14PR | |
| Rear | 5.00-8- 10PR | 5.00-8- 10PR | 6.00-9- 10PR | 6.00-9- 10PR | 6.50-10- 10PR | 6.50-10- 10PR | |||
| Tread | Front B2 | mm | 890 | 890 | 970 | 970 | 1000 | 1000 | |
| Rear B3 | mm | 920 | 920 | 970 | 970 | 970 | 970 | ||
| Wheelbase Y | mm | 1450 | 1450 | 1650 | 1650 | 1700 | 1700 | ||
| Ground clearance (full load/no load) | Mast M | 95/110 | 85/110 | 85/105 | 85/105 | 110/135 | 110/135 | ||
| Frame F | mm | 100/110 | 100/110 | 115/120 | 115/120 | 135/140 | 135/140 | ||
| Drive units & Control | Engine | Apply to truck model | CPCD15/ 18/20/25/ 30/35G-W1 | CPCD30/ 35G-Y3 | CPCD30/ 35G-M | CPQ(Y) D15/18/20/ 25G-H1 | CPQ(Y)D25/ 30/35G-H2 | CPQ(Y)D30/ 35G-R | |
| Engine type | Diesel | Diesel | Diesel | Gasoline | Gasoline | Gasoline | |||
| Engine Name Code | W1 | Y3 | M | H1 | H2 | R | |||
| Model | ISUZU C240PKJ | YANMAR 4TNE98 | MITSUBISHI S4S | NISSAN H20(K21) | NISSAN H25(K25) | MITSUBISHI 4G64-31ZG | |||
| Rated output | kw/rpm | 34.5/2500 | 44.3/2500 | 38/2300 | 31.2/2250 | 37.4/2300 | 37/2500 | ||
| Rated torque | N.m/rpm | 139/1800 | 206/1700 | 176/1700 | 143/1600 | 176/1600 | 161/1600 | ||
| No.of cylinder | 4 | 4 | 4 | 4 | 4 | 4 | |||
| Bore*stroke(mm) | mm | 86*102 | 98*110 | 94*120 | 892*83 | 89*100 | 86.5*100 | ||
| Displacement | (L) | 2.369 | 3.319 | 3.331 | 2.065 | 2.488 | 2.35 | ||
Remark:
1. Special lifting height available.(2-Stage mast:2.5m,2.7m,3.0m,3.3m,3.6m,4m,4.5m. 3-stage mast:4.3m,4.5m,4.8m,5m,5.5m,6m)
2. Attachment available.
3. The specification in the table are for standard models only, specification are subject to change without notice. For further information ,please contact us.
