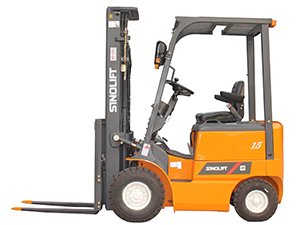

CPD series 1-3T Electric Forklift (DC)

Home » Products » Forklift Truck » Four Wheel Electric Forklift » CPD series 1-3T Electric Forklift (DC)

1. Towing Tractor
2. Electric Platform Truck

Related Products

Arc streamline body, beautiful., wide visual view ,low center of gravity, safety and high reliability.

DC series with electric control system produced by American GE company, characterized by stepless speed adjustment, reliability, electricity saving, sensitive, small heating and high efficiency, having function of brake regeneration, heat protection, too low battery capacity protection and instrument automatic testing trouble.

Electric control system is fitted inside the balance weight, good heat conduction efficiency, ,portable opening of back cover, easy to maintenance and service.

Fully imported dua pedal accelerator, small and flexible steering wheel, big capacity battery and rubber handle.

The lifting motor is arranged in the side of the frame, easy to maintenance and service.

Adjustable driver's parts meet requirement of the human body engineering, low noise, no pollution and environmental protection.

Specifications of 4-wheel DC 1.0-3.0T Electric Forklift
General	Manufacturer				SINOLIFT DC 1.0T-3.0T Electric Forklift
	Model				CPD10	CPD15	CPD20	CPD25	CPD30
	Power type				Battery	Battery	Battery	Battery	Battery
	Rated capacity			kg	1000	1500	2000	2500	3000
	Load center			mm	500	500	500	500	500
Dimensions	Lift height H			mm	3000	3000	3000	3000	3000
	Free lift H4			mm	162	162	140	140	145
	Fork size L×W×T			mm	920×120×40	920×120×40	1070×122×40	1070×122×45	1070×125×45
	Fork outside spread (Min./Max.)			mm	200/968	200/968	240/1020	240/1020	260/1100
	Mast tilt angle (forward/backward) α / β			deg	6/12	6/12	6/12	6/12	6/10
	Front ovehang X			mm	429	429	479	484	454
	Overall dimensions	Length to face of fork L1		mm	2056	2056	2349	2381	2481
		Overall width B1		mm	1090	1090	1152	1152	1265
		Mast lowered height H1		mm	1995	1995	2060	2060	2040
		Mast extended height H3		mm	4042	4042	4040	4040	4273
		Overhead guard height H2		mm	2162	2162	2159	2159	2125
	Turning radius R			mm	1820	1820	2050	2100	2230
	Min. right angle aisle width X			mm	1810	1810	2110	2150	2280
	Min. right angle stacking aisle width RASA			mm	3370	3370	3715	3755	3915
Performance	Travel speed (no load / full load)			km/h	13.5/11.5	13/11	12.5/11	12.5/10.5	13/12
	Lifting speed (no load / full load)			mm/sec	400/300	390/285	400/260	390/250	380/250
	Max. pull force (full load)			KN	6	6.5	10	10	10
	Services weight			kg	2900	3120	4160	4360	4850
	Max. gradebility			%	15	15	10	10	10
Wheel & Tire	Tyre		Front		6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	23×9-10
	Tyre		Rear		5.00-8-8PR	5.00-8-8PR	18×7-8-14PR	18×7-8-14PR	18×7-8
	Tread		Ront B2	mm	890	890	960	960	1040
	Tread		Rear B3	mm	920	920	950	950	980
	Wheelbase Y			mm	1250	1250	1500	1500	1630
	Ground clearance (no load / full load)		Mast M	mm	110/95	110/95	120/100	120/100	105/85
	Ground clearance (no load / full load)		Frame F	mm	105/95	105/95	120/100	120/100	140/120
Power & Control	Battery	Model			D-400(D-440/D-480 option)		D-630 (D-700 option)		D-500(600)
		Voltage		v/Ah	48/400 (440/480)		48/600(700)		80/500(600)
		Battery Weight		kg	740/(760/820)		1100(1180)		1390(1430)
	Motor	Drive motor	Model		XQ-5-3A1		XQ-5-7A3		XQ-10-1-T
		Drive motor	Rated power	kw/rpm	5.3(an hour)/1700		7.0(an hour)/1400		10.2/1500
		Lifting Motor	Model		XQD-8.2-1		XQD-8.6-3D		XQD-10-3C
		Lifting Motor	Rated power	kw/rpm	8.2(fifteen minutes)/1600		8.6(fifteen minutes)/1600		10/2000
	Controller			L	American GE DC separate excitation controller
	Remark:
	1. Special lifting height available.
	2. Attachment available.
	3. The specification in the table are for standard models only . For further information ,please contact us.
