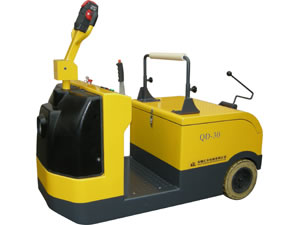

QD-SH Stand-on Electric Towing Tractor
With traction capacity of 2000kgs to 3000kgs, the tractor truck is mainly used to transport large amounts of goods in a workshop
or among workshops.
This QD-SH stand-on tractor uses the same battery 24-volt as seated tractors, as a result, you can upgrade your fleet of tractors at a minimal cost.
Safe automotive controls and steering wheel eliminate hand injuries and carpal tunnel syndrome hazards associated with twist grip controls.
Special design's the space lets driver's work be more relaxed comfortably.
Model No. | QD-20SH | QD-30SH | ||
Towing Capacity | kg | 2000 | 3000 | |
Driving Motor | W | DC-24V-2000W | DC-24V-2000W | |
Battery | D-240A 24V | D-300A 24V | ||
Driving Speed | km/h | 7 | 7 | |
Controller Type | MOSFET | MOSFET | ||
Working Time | Hours | 6 | 6 | |
Min. Turning Radius | mm | R | 1000 | 1380 |
Operation Type | Stand-on | Stand-on | ||
Min.under-clearance | mm | 85 | 85 | |
Steering Wheel | mm | White Rubber Φ267x127 | White Rubber Φ267x127 | |
Drive Wheel | mm | Φ330x165 | Φ330x165 | |
Overall length | mm | L | 1490 | 1490 |
Overall width | mm | W | 820 | 820 |
Overall height | mm | H | 1350 | 1350 |
Service Weight | kg | 1150 | 1450 |
