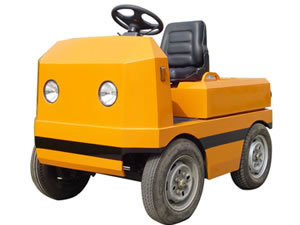

العربيةQDD-F 4-wheel electric towing tractor
The practical work table raised the auxiliary work efficiency effectively.
New exempts the maintenance motor with moisture-proof, the dustproof protection.
Electron steering provides the precise control.
The self-braking causes the operation to be safer.
Special design's the space lets driver's work be more relaxed comfortably.
Seater electric tow, Convenience operation.
| Model | QDD-2F | QDD-5F | QDD-8F | QDD-10F | |||
| Operating Type | 4-Wheels, Back Drive, Hydraulic Brake System, MOFSET, Hand Brake | ||||||
| Drawbar Pull | N | 800 | 1100 | 1100 | 250N | ||
| Towing Capacity | kg | 2000 | 5000 | 8000 | 10000 | ||
| Drive Speed (full-loaded) | Km/h | 11 | 10 | 8 | 8 | ||
| Turning Radius | R | mm | 2200 | 2200 | 2200 | 2200 | |
| Gradeability (full-loaded) | (%×m) | 10%×12m | 10%×12m | 10%×12m | 10%×12m | ||
| Load Distribute | front wheel | kg | 420 | 492 | 492 | 630 | |
| rear wheel | kg | 520 | 608 | 608 | 1180 | ||
| Service Weight | kg | 940 | 1100 | 1100 | 1810 | ||
| Load Rate (front : rear) | 0.45: 0.55 | 0.45: 0.55 | 0.45: 0.55 | 0.35: 0.65 | |||
| Motor Model | XQ-3-1 | XQ-4.5 | XQ-4.5 | XQ-6.3 | |||
| Rated Power | Kw | 3 | 4.5 | 4.5 | 6.3 | ||
| Rated Voltage | V | 45 | 45 | 45 | 45 | ||
| Rated Current | A | 87 | 120 | 120 | 173 | ||
| Battery | V/Ah | 48/250 | 48/350 | 48/520 | 48/520 | ||
| Rated rotate speed | EPM | 1780 | 1600 | 1600 | 1200 | ||
| Overall Length | L | mm | 1700 | 1700 | 1700 | 2095 | |
| Overall Width | W | mm | 1130 | 1130 | 1130 | 1080 | |
| Overall Height | H | mm | 1300 | 1300 | 1300 | 1390 | |
| Wheel base | L1 | mm | 1030 | 1030 | 1030 | 1150 | |
| Tread | front wheel | mm | 980 | 980 | 980 | 920 | |
| rear wheel | mm | 1000 | 1000 | 1000 | 890 | ||
| Ground Clearance | B | mm | 110 | 110 | 110 | 142 | |
| Seat Height (above ground) | H1 | mm | 1050 | 1050 | 1050 | 1050 | |
| Drawbar Height (above ground) | H2 | 320 | 320 | 320 | 365 | ||
| Tire | Type | penumatic | penumatic | penumatic | penumatic | ||
| Front Wheel | 145/70-R12/×2 | 145/70-R12×2 | 145/70-R12×2 | 6.50-10/×2 | |||
| Rear Wheel | 145/70-R12/×2 | 145/70-R12×2 | 145/70-R12×2 | 6.50-10/×2 | |||
| Optional Accessories: | |||||||
| 1, Windshield | |||||||
| 2, Sun canopy | |||||||
| 3, All-weather cabin | |||||||
| 4, New Assembly Meter | |||||||
| 5, Safety Seat with Belt and Armrest | |||||||
| 6, Warning Lamp. | |||||||
| 7, Spot Driving Device | |||||||
| 8, Solid Tire | |||||||
| 9, Beep. | |||||||
| 10, CD player | |||||||
