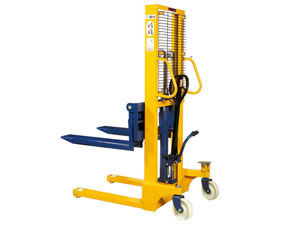

CTY Manual Hydraulic Stacker with adjustable forks
Robust Steel profile construction.
An economical lift to handle tasks from transporting dies and moulds skids and pallets.
Sturdy and compact enough to fit through standard doors and to operate in congested areas.
Precision engineered for smooth performance and exceptional durability.
Lifting function operated by foot and hand controls.
Model | CTY500-16 | CTY1000-16 | CTY1500-16 | CTY2000-16 | CTY1000-25 | CTY1000-30 | |
Rated Capacity | kg | 500 | 1000 | 1500 | 2000 | 1000 | 1000 |
Load Center | mm | 400 | 400 | 400 | 400 | 400 | 400 |
Lifting Height | mm | 85-1600 | 90-1600 | 90-1600 | 90-1500 | 95-2500 | 95-3000 |
Fork Length | mm | 800 | 900 | 900 | 900 | 900 | 900 |
Fork Width | mm | 220-750 | 220-950 | 220-950 | 220-950 | 220-900 | 220-900 |
Min. Turning Radius | mm | 1110 | 1250 | 1250 | 1250 | 1250 | 1250 |
Overall Length | mm | 1280 | 1380 | 1380 | 1380 | 1340 | 1340 |
Overall Width | mm | 800 | 1000 | 1000 | 1000 | 950 | 950 |
Overall Height | mm | 1980 | 2100 | 2100 | 2100 | 1810 | 2060 |
Net Weight | kg | 155 | 250 | 260 | 285 | 355 | 370 |
