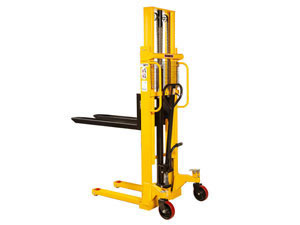

CTY-F Manual Hydraulic Stacker with Fixed forks
The hydraulic pump uses the newest technology
Special C-shaped steel helps provide strength and rigidity
Adjustable forks for various needs
Save time and manpower
Conforms to CE safety standard
Conforms to EN1757-1
Model | CTY1000-16F | CTY1500-16F | CTY2000-16F | CTY1000-25F | CTY1000-30F | |
Rated Capacity | kg | 1000 | 1500 | 2000 | 1000 | 1000 |
Load Center | mm | 400 | 400 | 400 | 400 | 400 |
Lifting Height | mm | 1600 | 1600 | 1600 | 2500 | 2500 |
Fork Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 |
Min. Turning Radius | mm | 1250 | 1250 | 1250 | 1250 | 1250 |
Fork Width | mm | 550 | 550 | 550 | 550 | 550 |
Overall Length | mm | 1500 | 1500 | 1500 | 1500 | 1500 |
Overall Width | mm | 865 | 865 | 865 | 865 | 865 |
Overall Height | mm | 2100 | 2100 | 2100 | 1810 | 2060 |
Net Weight | kg | 250 | 260 | 285 | 355 | 370 |
