العربيةCDD10-070 CDD10-050 Economic Power Stacker

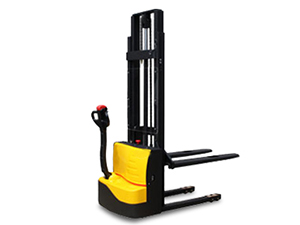

CDD10-070 CDD10-050 (straddle leg) Cap.1000KGS Duplex Mast Electric WalkieStacker
CDD10-070 and CDD10-050 are the light-duty economic electric stacker, equipped with DC driving system and electromagnetic brake. Without electric power steering system but longer handle design, still very easy to operate.
1. Strong H profile mast, stronger mast make lifting to be safe and fluent with more capacity.
2. Steel cover: one piece steel cover, which reduce the cover damage greatly.
3. For the CDD10-070 fork over stacker, One piece fork: with 8mm to 10mm thickness. The CDD10-050 with 1070x100x40mm forged forks. SINOLIFT proudly declare that there are no possibility of deformation under high frequency using.
4. Two pieces dismountable handle tube, made from high quality mold, which make assembly and dismantle of handle tube to be much easier.
5. Driving controller: Curtis 1243 controller can be regulated by Curtis Hand Set easily.
6. Longer handle design: very light and easy turning design which is very comfortable.
| Model | CDD10-070 | CDD10-050 | |
| Mast | Duplex | Duplex | |
| Fork leg | Fixed leg | Adjustable straddle leg | |
| Capacity | kg | 1000 | 1000 |
| Load center | mm | 600 | 600 |
| Lifting height | mm | 2000/2500/3000/3300 | 2000/2500/3000/3300 |
| Fork length | mm | 1150(1220) | 1070 |
| Fork width | mm | 185 | 100 |
| Outside width of forks | mm | 550/600/650/685 | 200-812 |
| Inner width of forks | mm | 180/230/280/315 | 0-612 |
| Travel speed | km/h | 3 laden/3.5 unladen | 3 laden/3.5 unladen |
| Lift speed | mm/s | 130/230 (laden/unladen) | 130/230 (laden/unladen) |
| Lowering speed | mm/s | 130/230 (laden/unladen) | 130/230 (laden/unladen) |
| Drive motor | kw | DC 0.63 | DC 0.63 |
| Lifting motor | kw | DC 2.0 | DC 2.0 |
| Battery | V/Ah | 12V/70Ah*2 | 12V/70Ah*2 |
