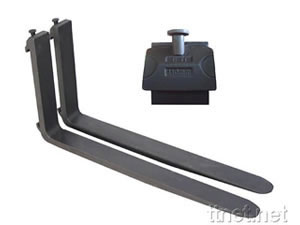

1. Our Forklift Forks are forged with round bar steel or flat iron.
2. Made in accordance with ISO2328-1977, GB5184-85and meets the standard of EN12100-1:2003
3. Load capacity test: 1 million per time
4. Material: 40Cr; 35CrMo
5. Hook material: 20Cr;35Cr;40Cr, mould forged, high durability and precision
6. Fully heat treatment to improve hardness as high as 280-320HB
7. Each single forklift fork has passed the hardness and crack tests (magnetic powder test in a dark room)
8. We are able to manufacture all kinds of forklift forks including: ISO/FEM standard forks, straight forks, blank forks, pin type forks, big section forks, special forks as customer demands.

ISO, I.T.A, FEM standard forks:
2A, 2B, 3A, 3B, 4A, 4B up to 350mm width big forks!

ISO Standard	FORKS		CARRIAGE
Class A ,B	M	K	A	B	C	D
I	394	306	76	331	13	16
II	470	382	76	407	13	16
III	568	477	76	508	16	21.5
IV	743	598	127	635	19	25.5
V	830	680	127	728	25	34

Best Quality comes out from the Best QC process!　
1. Raw Material: We strictly pick out the Cr40 Alloy Steel rolled by 6:1 proportion and forged by 3:1 proportion.. Smooth/good shape of raw steel is critically important for final products.　
2. Machine/equipment Guarantee 80% equipments are automatically/digital control.　
3. Experienced technicians and workers with regular training.　
4. ISO 2328 and ISO2330. Standard production process with strict 24hours heat-treatment. Hardness testing HB250-361 . Strict couple making.　
5. 3times static overload testing; 1.5times dynamic overload testing; 1million times of fatigue/yield testing!　
6. Market is always the best teacher of quality! Our world wide sale can show the quality confidence!　
Generally, good forks means not only safety but also good fitting and good looking!

Forks with a long taper on the lower side of the blade. Basically, the taper starts close to the heel. The fork is shaped like a knife and is often just a few mm thick.
Fully tapered forks are tailor-made to suit customers' requirements in terms of fork thickness, tip thickness and taper length.
Fully tapered forks are mostly used in the furniture and wood panel industries.
To quote the following additional data is required:
1. Tip thickness (mm)
2. Length of taper

Class	Width(in.)	Tickness(in.)	Capacity(T/pair)	Safe Working Mark(kg*mm)	Length(in.)	Item No.
Ⅱ	4(100)	1.38(35)	1.8	850*600	36	AS2A1836
					42	AS2A1842
					48	AS2A1848
					54	AS2A1854
					60	AS2A1860
					72	AS2A1872
	4(100)	1.58(40)	2.0	1000*600	36	AS2A2036
					42	AS2A2042
					48	AS2A1048
					54	AS2A2054
					60	AS2A2060
					72	AS2A2072
	4.8(122)	1.58(40)	2.5	1250*600	36	AS2A2536
					42	AS2A2542
					48	AS2A2548
					54	AS2A2554
					60	AS2A2560
					72	AS2A2572
Ⅲ	4.8(122)	1.77(45)	3.0	1700*600	42	AS3A3042
					48	AS3A3048
					54	AS3A2054
					60	AS3A3060
					66	AS3A3066
					72	AS3A3072
	6(150)	1.58(40)	4.0	2250*600	42	AS3A4042
					48	AS3A4048
					54	AS3A4054
					60	AS3A4060
					66	AS3A4066
					72	AS3A4072
	6(150)	1.97(50)	4.5	2250*600	42	AS3A4542
					48	AS3A4548
					54	AS3A4554
					60	AS3A4560
					66	AS3A4566
					72	AS3A4572
Ⅳ	6(150)	2.36(60)	6.0	3500*600	48	AS4A6048
					54	AS4A6054
					60	AS4A6060
					66	AS4A6066
					72	AS4A6072
					96	AS4A6078
	6(150)	2.56(65)	7.0	4000*600	48	AS4A6048
					54	AS4A6054
					60	AS4A6060
					66	AS4A6066
					72	AS4A6072
					96	AS4A6078
1.Mounting dimensions are conformed to ISO2328;
2.All forks above have a minimum safety of 3:1;
3.Lock pin assembly included;
4.We can design other forks according to your requirements

Pin-Type forks are guided on a shaft.
The dimensions are not standardized. SINOLIFT is producing a wide variety of pin-type forks which are individually designed to customer's requirement. Mostly pin-type forks are used for larger lift trucks or for construction machines.

SHAFT TYPE FORKS

Fork Cross Section TXW(inch)	Fork Cross Section TXW(mm)	Capacity/pair Kg@600mm	Capacity/pair Kg@900mm	Capacity/pair Kg@1200mm
1.25*4	35*100	1700	1150	850
1.5*3	40*80	1700	1150	850
1.25*4	40*100	2500	1650	1250
1.25*5	40*122	2700	1800	1350
1.25*6	40*150	3300	2200	1650
1.25*7	40*180	4000	2650	2000
1.25*8	40*200	4400	2950	2200
1.75*4	45*100	2800	1850	1400
1.75*4.5	45*115	3200	2150	1600
1.75*5	45*112	3400	2250	1700
1.75*7	45*180	5000	3350	2500
2*4	50*100	3500	2350	1750
2*5	50*122	4200	2850	2100
2*6	50*150	5200	3450	2600
2*7	50*180	6300	4200	3150
2*8	50*200	6900	4600	3450
2.25*4	60*100	5050	3350	2525
2.25*5	60*122	6300	4200	3150
2.25*6	60*150	7500	5000	3750
2.25*7	60*180	9000	6000	4500
2.25*8	60*200	10000	6650	5000
2.5*5	65*122	7300	4850	3650
2.5*6	65*150	8800	5850	4400
2.5*7	65*180	10500	7000	5250
2.5*8	65*200	11700	7800	5850
2.75*6	70*150	10200	6800	5100
2.75*7	70*180	12200	8150	6100
2.75*8	70*200	13600	9060	6800
3*6	75*150	11700	7800	5850
3*7	75*180	14100	9400	7050
3*8	75*200	15600	10400	7800
3.5*8	90*200	22500	15000	11250
3.75*8	95*200	25100	16750	12550
4*10	100*250	34700	23150	17350
4.5*12	115*300	55050	36700	27525
5.5*12	140*300	81600	54400	40800
6*12	150*300	93700	62450	46850

Shaft Type Forks

Fork Cross Section	T×W mm	Capacity/pair	Capacity/pair	Capacity/pair
T×W(Inch)	T×W mm	Capacity/pair	Capacity/pair	Capacity/pair
1.25×4	35×100	1800	1200	900
1.5×3	40×80	2000	1330	1000
1.25×4	40×100	2500	1650	1250
1.25×5	40×120	2700	1800	1350
1.25×6	40×150	3300	2200	1650
1.25×7	40×180	4000	2650	2000
1.25×8	40×200	4400	2950	2200
1.75×4	45×100	2800	1850	1400
1.75×4.5	45×115	3200	2150	1600
1.75×5	45×125	3400	2250	1700
1.75×7	45×180	5000	3350	2500
2×4	50×100	3500	2350	1750
2×5	50×125	4200	2850	2100
2×6	50×150	5200	3450	2600
2×7	50×180	6300	4200	3150
2×8	50×200	6900	4600	3450
2.25×4	60×100	5050	3350	2525
2.25×6	60×150	7500	5000	3750
2.25×7	60×180	9000	6000	4500
2.25×8	60×200	10000	6650	5000
2.5×6	65×150	8800	5850	4400
2.5×7	65×180	10500	7000	5250
2.5×8	65×200	11700	7800	5850
2.75×6	70×150	10200	6800	5100
2.75×7	70×180	12200	8150	6100
2.75×8	70×200	13600	9060	6800
3×6	75×150	11700	7800	5850
3×7	75×180	14100	9400	7050
3×8	75×200	15600	10400	7800
