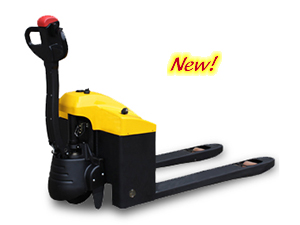

العربيةCBD15-170G - CAP 1500KGS DC Power Economic Pallet Truck
CBD15-170G is the economic power pallet trolley, with stable quality. Capacity 1500kg, designed for light-duty conditions; widely used in supermarket and beverage industry, replacing the manual pallet truck.
Advantages compared with similar light-duty electric pallet truck
1. Steel cover: one piece steel cover, which reduce the cover damage greatly; 5 minutes to change the battery, 5 minutes to take out all the electronic parts and much easier maintenance.
2. One piece fork: with 8mm thickness. SINOLIFT proudly declare that there are no possibility of deformation under high frequency using.
3. Two pieces handle tube: two piece dismountable handle tube, made from high quality mold, which make assembly and dismantle of handle tube to be much easier.
4. Curtis controller: equipped with Curtis 1243, industrial grade controller, easier trouble shooting, more reliable industrial controller for industrial truck.
5. With cooling fan equipped on the driving motor, it will lower the temperature of the motor and makes high frequency using possible.
6. Safety ramp restraint: provides automatic electronic braking that restricts vehicle movement while in neutral; Meets EEC fault detection.
7. Added with Integral loading wheel design, makes the body compact and stable.
| Model | CBD15-170G | |
| Capacity | kg | 1500 |
| Load center | mm | 600 |
| Operator | walkie | |
| Electric power steering (EPS) | unavailable | |
| Lifting height | mm | 115 |
| Lowered height of fork | mm | 85 |
| Fork length | mm | 1150/1220 |
| Fork width | mm | 165 |
| Traveling motor | kw | 0.63DC |
| Lifting motor | kw | 0.8DC |
| Battery capacity/type | Ah | 85Ah maintenance free |
Right reserved for technical changes and improvements.
