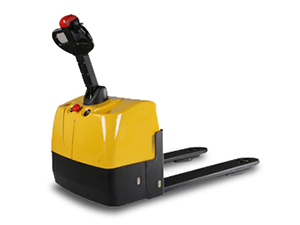

العربيةCBD15-610 CAP 1,500KGS DC Power Pallet Truck
CBD15-610 is the earliest model in SINOLIFT which stands 10 years testing of the market, with very stable quality. With 1500KGS capacity, is designed for light-weight carrying conditions, widely used in supermarket and beverage industry, loading and unloading on the vehicles, replacing the manual pallet truck.
Equipped with Self-Made DC drive system, 200A Curtis controller. Integral loading wheel design makes the body compact and stable. 70Ah maintenance free battery and build in charger makes the use and maintenance very convenient. Injection mold cover is accurate and good looking. The forks are equipped with guiding wheels, can go into/out of the pallet freely, improve the carrying efficiency. Walk with handle in vertical position is optional, allows to work in a confined place. The standard equipped lifting Limit function can protect hydraulic motor, save energy and battery. Self made handle can be modified for cold store application.
Compared with similar light-weight electric pallet truck, our advantages are following
1. Use traditional DC motor not permanent magnet motor, strong reliability.
2. Added with Integral loading wheel design, makes the body compact and stable
3. Use big current controller, higher allocation than other similar products
4. Rational body design, convenient for maintenance and repair
5. 10 years manufacture experience, reliable quality
| Model | Unit | CBD15-610 |
| Capacity | kg | 1500 |
| Load center | mm | 600 |
| Max.lift height | mm | 120 |
| Lowered height of fork | mm | 74/85 |
| Fork length | mm | 1150/1200 |
| Fork width | mm | 540/685 |
| Overall length | mm | 1630 |
| Min.turning radius | mm | 1400 |
| Travel speed | km/h | 3.5 landen/4 unladen |
| Lift speed | m/s | 0.056 laden /0.06unladen |
| Battery | Ah | 70Ah manitenance free battery |
| Control system | CURTIS 1243/200A |
