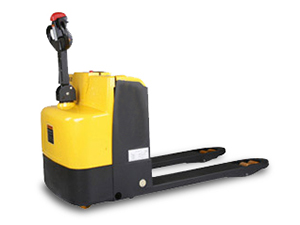

العربيةCBD20-150 - CAP 2,000KGS AC & EPS Walkie Pallet Truck
CBD20-150 with 2000KGS capacity, is dedicated to the medium labor intensity condition design of electric pallet truck, Equipped with SINOLIFT-Made EPS and AC drive system. Standard equipped with 210Ah lead-acid battery, 150Ah GEL battery and 224Ah AGM as option. Chassis design life up to 10 years. Injection mold cover, Stellana Brand Wheels offer best quality. Double controllers can real-time protect the vehicle control from circuit overvoltage, under voltage, over current, excess temperature, Short circuit. The lifting Limit function can protect hydraulic motor, save energy and battery. Self made handle can be modified for cold store application.
1. 200A Curtis transistor controller
2. High performance AC driving Motor
3. SINOLIFT EPS controller
4. EPS system as standard, low energy consumption, low noise
5. Electromagnetic brake
6. Automatic slow down technology for corner sharp turn
7. Ergonomic own-made handle with safety reversing switch and horn
8. 210Ah Industrial battery or 224Ah AGM battery pack or 150Ah GEL battery pack option.
9. Battery discharge indicator with hour meter
10. Key switch to limit access to approved personnel
11. Intelligent battery charger
| Model | Unit | CBD20-150 |
| Capacity | kg | 2000 |
| Load center | mm | 600 |
| EPS | electric power steering | |
| Lowered height of fork | mm | 85 |
| Fork length | mm | 1150/1200 |
| Fork width | mm | 540/685 |
| Overall length | mm | 1750 |
| Min.turning radius | mm | 1575 |
| Travel speed | km/h | 4 landen/4.5 unladen |
| Lift speed | m/s | 0.056 laden/0.06 unladen |
| Battery | Ah | 210Ah manitenance free battery |
| Control system | CURTIS 1230/200A |
