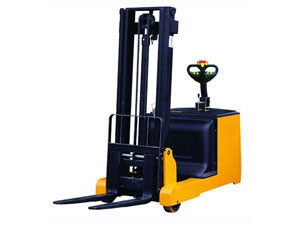

العربيةCPD-SX Counterweight Power Stacker
Capacity: 0.5-1.0T
Max Lifting Height: 2.5m
Designed for loading and transporting the goods of factories and warehouses
1. With small volume and especially suitable for operation at narrow passages and floors
2. Double hydraulic units for good operating flexibility and visibility
The non-starddle lift is ideal for feeding machinery or lifting to docks and mezzanines where base legs could interfere.
Heavy-duty mast can been adjusted to suitable degree.
Forged fork for easy access.
Powerful drive and power unit made in Europe.
Top quality electronic control system from Curtis.
3.Low noise, no pollution, and high reliability with free lifting function
Conforms to EN1757-1:2000,EN1726.
| Item | CPD1.0/2.5SB | |||
| Capacity Q (Kg) | 1000 | |||
| Max Lifting Height (mm) | 2500 | |||
| Free Lifting Height(mm) | 168 | |||
| l (mm) | 800 | X (mm) | 928 | |
| X2 (mm) | 245 | Y (mm) | 1010 | |
| L2 (mm) | 1383 | L (mm) | 2183 | |
| M (mm) | 570 | N (mm) | 100 | |
| h1 (mm) | 1700 | h3 (mm) | 2500 | |
| h4 (mm) | 2968 | Wa (mm) | 1324 | |
| Net Weight (Kg) | 1460 | |||
| Battery | 240AH/24V 17.5Kg/PCS×12PCS=210Kg | |||
| Motor | Travel | 1.2KW/24V | ||
| Lift | 2.2KW/24V | |||
| Front Wheel | Φ200×80mm | Driving Wheel | Φ250×80mm | |
