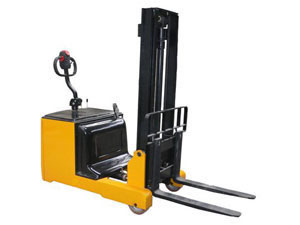

CPD-SB(II) Counterweight Power Stacker
Counterbalance Stacker :
CPD-SB Counterweight Power Stacker is our new style and comes into the market in the year 2012. Counter balance design special available for nonstandard rack and narrow aisle. The mast could be forward or backward and this is convenient for the goods loading or unloading. It sells well in Japan.
There is no bolster leg
Adjustable fork width is suitable for different pallet
Original Germen made mast and CURTIS controller to keep the high quality and good performance.
hree lowering speed make convenient unloading
| Model | CPD-1.0SB(II) | ||
| Load Capacity Q | kg | 1000 | |
| Lifting Height h3 | mm | 2500 | |
| Load Center C | mm | 400 | |
| Free Lift heihgt h1 | mm | 140 | |
| Height with Mast lowered h2 | mm | 1862 | |
| Heihgt With Mast Extented h4 | mm | 3310 | |
| Handle Height h5 | mm | 1135~1560 | |
| Min. Heihgt h6 | mm | 80 | |
| Clearnance h7 | mm | 80 | |
| Overall length L | mm | 2280 | |
| Overall Width B | mm | 840 | |
| Wheelbase Y | mm | 1132 | |
| Min. Turning Radius Wa | mm | 1350 | |
| Foks size ( s×e×l) | mm | 32×100×900 | |
| Forkwidth b1 | mm | 200~560 | |
| Min. Right angle stacing aisle width ast | mm | ≥2520 | |
| Mast Tilt | Frontward α | ( °) | 2 |
| Backward β | ( °) | 5 | |
| Gradabeality | % | 8 | |
| Front wheel | mm | Φ200×80 | |
| Rear Wheel | mm | Φ260×80 | |
| Lifting Speed | Non-laden | mm/s | 140 |
| Full-load | mm/s | 100 | |
| Max. drive speed | km/h | 6 | |
| Drive motor | kw | 1.2 | |
| Lift Motor | kw | 2 | |
| Battery | AH/V | 240/24 | |
| Service Weight | kg | 1460 | |
