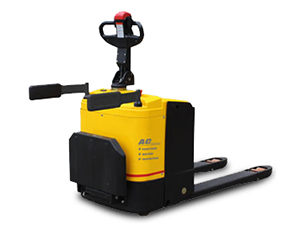

العربيةCBD20-410 CAP 2,000KGS Rider Pallet Truck
CBD20-410 As a stand-on driving type electric truck suitable for high strength condition use, it provides users with safe, comfortable, reliable logistic solutions. The AC driving motor provides constant strong power and it is maintenance free.
1. Steel cover：one piece steel cover, which reduce the cover damage greatly.
2. One piece fork: with 8mm thickness. SINOLIFT proudly declare that there are no possibility of deformation under high frequency using.
3. Two pieces handle tube: two piece dismountable handle tube, made from high quality mold, which make assembly and dismantle of handle tube to be much easier.
4. Equipped with Curtis 1230 controller.
5. Unique design of Link Chain from handle to driving section, no wire abrasion happens on our trucks because all wires are fixed when the truck is working.
6. Equipped with high performance AC driving Motor.
| Model | Unit | CBD20-410 |
| Capacity | kg | 2000 |
| Load center | mm | 600 |
| Lowered height of fork | mm | 85 |
| Fork length | mm | 1150 |
| Fork width | mm | 165 |
| Overall length | mm | 1916(folded)2426 |
| Min.turning radius | mm | 1759/2167 |
| Travel speed | km/h | 6landen/7unladen |
| Lift speed | m/s | 0.056laden/0/06unladen |
| Battery | Ah | 150or 210Ah industry battery |
| Control system | CURTIS 1230 |
