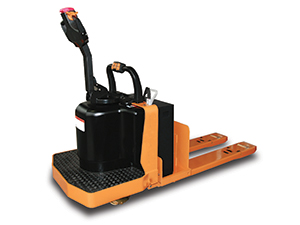

العربيةCBE30RT/CBE35RT - AC Rider Pallet Truck
Our 3000kg/3500kg capacity AC pallet truck has been designed to provide high productivity, reliability and low operating cost. Powered by a large AC drive motor that can propel the unit to 9mph, the CBE30RT/CBE35RT will allow operators to move more product per hour, and since there are no moving parts in the drive motor. many maintenance expenses are eliminated over the equipment's lifecycle.
With it's heavy duty steel construction and the use of best of breed non-proprietary parts the CBE30RT/CBE35RT delivers exceptional value. If you’re looking for a powered pallet truck that is tough and highly productive select our CBE30RT/CBE35RT for your facility.

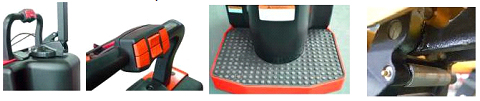

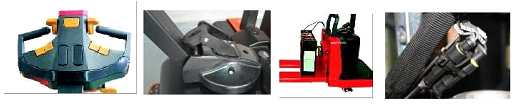

Our CBE30RT/CBE35RT 0 Rider Pallet Trucks include
1. 24volt ZAPI AC transistor control
2. Large high torque AC drive motor.
3. Heavy duty Comer transmission
4. Shaft mounted electromechanical brake
5. Ergonomic handle with lift, lower, and infinitely variable speed control
6. Ergonomic high-speed bar with lift, lower, horn and high speed controls
7. Safety reversing switch, dual horn controls and tiller realease brake
8. Battery discharge indicator with hour meter
9. Key switch to limit access to approved personnel
Performance & Reliability
1) The latest AC controller, high reliability, with regenerated braking, anti-roll back and adjustable settings, ensure the best performance in the different states.
2) The innovative AC system offers quick response, accurate control, impact structure, excellent performance, longer battery service life.
3) World-class hydraulic power pack, with vibration and excellent leak tightness, automatically adjusts the rate of decline.
4) Excellent performance of getting in and out of empty pallet, greatly increases the operation efficiency.
Safety & Durability
1) Sealed switches and logic boards for operation in coolers, wet rooms and freezers down to -20。F(-28.9。C)
2) Large control buttons mounted to a soft grip high speed handle.
3) Large Platform area for easy operation.

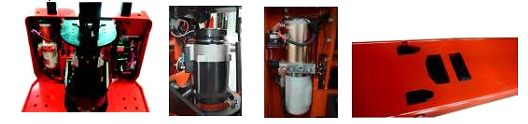

4) The vertical motor ensures convenience inspection and maintenance of motor and brake, provide much better maintainability than horizontal motor.
Operability
1. Ergonomically designed handle ensure smooth and easy controls of all operation. All the operation of lifting and travelling, will be easily achieved by touching the button switches in the handle.
2. Anti-roll back available as standard to prevent uncontrolled traveled travel speed or roll-back on ramps when loading and unloading.
3. The unique suspension Driving Floating Adjustable system (DFA) design, ensures the truck less vibration, stable, no tilt while turning in high speed, guarantees the accurate operator’s operating handle freely and easily with full load, and could adjust operating force of handle to ease operator according to various workplace.
4. Sideway battery design, easy for replacement.
| Manufacturer | SINOLIFT | ||
| Model designation | CBE30RT（S） | CBE35RT（S） | |
| Model designation | Battery | Battery | |
| Drive unit | Ride | Ride | |
| Load capacity | Q (kg) | 3000 | 3500 |
| Load center | c (mm) | 600 | 600 |
| Service weight (Incl. battery) | kg | 810 | 1040 |
| Tyre type，operator side/ load side | PU/PU | PU/PU | |
| Wheels, number operator/load side (x=drive wheels) | 2001/2/2 | 2001/2/2 | |
| Lift height | h3 (mm) | 140 | 140 |
| Fork height, lowered | h13 (mm) | 82.5 | 82.5 |
| Overall length | l1 (mm) | 2325 | 2325 |
| Overall width | b1/ b2 (mm) | 915 | 915 |
| Fork dimensions | s/ e/ l (mm) | 60/230/1190 | 60/230/1190 |
| Fork spread, min/ max | b5 (mm) | 685 | 710 |
| Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2555 | 3765 |
| Outer turning radius | Wa (mm) | 2064 | 2590 |
| Travel speed, laden/ unladen | km/ h | 10.5/14.5 | 10.5/14.5 |
| Lifting speed, laden/ unladen | m/ s | 0.30/0.33 | 0.30/0.33 |
| Lowering speed, laden/ unladen | m/ s | 0.40/0.38 | 0.40/0.38 |
| Maximum gradeability, laden/ unladen S2 5 min. | % | 6/15 | 6/15 |
| Service brake | Electromagnetic | Electromagnetic | |
| Drive motor rating S2 60 min. | kW | 4 | 4 |
| Lift motor rating at S3 15% | kW | 2.2 | 2.2 |
| Battery voltage/ rated capacity (5h) | V/ Ah | 24/360 | 24/360 |
| Type of drive control | AC ZAPI | ||
| Sound level at operator's ear | dB (A) | 70 | |
