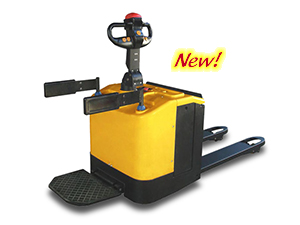

CBD25-460/CBD30-460 CAP 2,500/3,000KGS AC & EPS Rider Pallet Truck
CBD25-460/CBD30-460 As a stand-on driving type electric truck suitable for high strength condition use, it provides users with safe, comfortable, reliable logistic solutions. The EPS can reduce the labor intensity. The AC driving motor provides constant strong power and it is maintenance free. Standard equipped with large 280Ah capacity battery, can meet customers' requirement of continuous working, side-way battery design is convenient for the customer to replace the battery. Injection mold cover, Stellana Brand Wheels offer best quality. Double controllers can real-time protect the vehicle control circuit from overvoltage, under voltage, over current, excess temperature, Short circuit. The lifting Limit function can protect hydraulic motor, save energy and battery. Self- made handle can be modified for cold store application.
1. 200A Curtis transistor controller
2. High performance AC driving Motor,
3. SINOLIFT EPS controller
4. EPS system as standard, low energy consumption, low noise
5. Electromagnetic brake
6. Automatic slow down technology for corner sharp turn
7. Ergonomic Self-made handle with safety reversing switch and horn
8. Floating system with double spring and reinforcing traction cylinder.
9. 280Ah or 210Ah industrial battery option
10. Battery discharge indicator with hour meter
11. Key switch to limit access to approved personnel
12. Intelligent battery charger
Model | Unit | CBD25-460/CBD30-460 |
Capacity | kg | 2500/3000 |
Load center | mm | 600 |
EPS (electric power steering) | standard equipped | |
Lowered height of fork | mm | 85 |
Fork length | mm | 1150/1200 |
Fork width | mm | 540/685 |
Overall length | mm | 1916(folded)2333 |
Min.turning radius | mm | 1746/2158 |
Travel speed | km/h | 5landen/unladen |
Lift speed | m/s | 0.056laden/0/06unladen |
Battery | Ah | 210Ah or 280Ah industry battery |
Control system | CURTIS 1230/200A |
