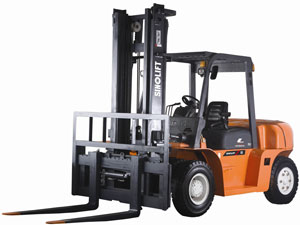

العربيةL Series 5-7T Heavy Duty Diesel Forklift
Strong pull results in a strong capacity of slope climbing:fully load 30% and empty load 20%.
Locking device of neutral gear ensures that the machine is safer in repairing condition.
Lay more stress on pursuing comfort of control. The distribution of working control,gearshift control and braking and parking system and so on with more humanization effectively increases the control space and maximally decreases tiredness of operators. For examples: The operator's seat can be adjusted top forwards, backwards, leftwards and rightwards', and steering wheel can be adjusted within the scope of front 24°- back 24°.
Its low back horizon makes the operator's field of vision wider, which is more suitable for the working condition of frequent backing of the fork truck.
More mature technologies used in loaders for more serious working conditions are applied in several controlling accessories so that the capacity is more dependable.
The integral declining fuel tank differs totally from the same type of domestic fork trucks, which omits the hydraulic pressure pipeline, connection and declining fuel tank around the front connection board so that the machine is clean and tidy. Mea-nwhile, the damage probability of the connection and the declining fuel tank is reduced. Thus, The credibility of the overall machine is increased.
The distribution of the control system is reasonable. The space is large and the driver's seat is regulable, which can maximally reduce tiredness of operation. The fluctuating declining steering wheel and the new type of linked multifunctional dashboard is an adequate embodiment of human being harmony with machines.
The direct injection engine is allocated with advanced sorts of performance indexes, which is of low fuel consumption and is easy to start.
More mature technologies used in loaders under more serious working conditions are applied in several controlling acces sories to ensure more dependable performance.
| Generals | Manufacture | SINOLIFT L Series 5.0T-7.0T Diesel Forklift Specifications | |||||||
| Model | CPCD50-WF | CPCD60-WF | CPCD50-CY | CPCD60-CY | CPCD70-CY | ||||
| ***** | ***** | CPCD50-W | CPCD60-W | CPCD70-W | |||||
| ***** | ***** | CPCD50-M | CPCD60-M | CPCD70-M | |||||
| Power type | Diesel | Diesel | |||||||
| Rated capacity | kg | 5000 | 6000 | 5000 | 6000 | 7000 | |||
| Load center | mm | 600 | 600 | ||||||
| Dimensions | Lift height | mm | 3000 | 3000 | |||||
| Free lift height E | mm | 195 | 195 | ||||||
| Fork size LxUxN | mm | 1220x150x60 | 1220x150x60 | 1220x150x65 | |||||
| Fork outside spread Min./Max. | mm | 300/1700 | 300/1700 | ||||||
| Mast tilt angle K/T | deg | 6/12 | 6/12 | ||||||
| Front o-verhang G | mm | 622 | 622 | ||||||
| Overall dimensions | Length to face of fork J | mm | 3472 | 3592 | 3472 | 3592 | |||
| Overall width W | mm | 1995 | 1995 | ||||||
| Mast lowered height C | mm | 2500 | 2500 | ||||||
| Mast extended height A | mm | 4419 | 4419 | ||||||
| Overhead guard height D | mm | 2420 | 2420 | ||||||
| Turning radius P | mm | 3300 | 3450 | 3300 | 3450 | ||||
| Min. right angle aisle width X | mm | 3000 | 3090 | 3000 | 3090 | ||||
| Performance | no load/full load | Travel speed | km/h | 28/26 | 28/26 | ||||
| Lift speed | mm/sec | 460/330 | 500/370 | 500/330 | 450/320 | ||||
| Max. gradeability | % | 20 | 20 | ||||||
| Self weight | kg | 8000 | 8640 | 8340 | 8840 | 9350 | |||
| Wheel & Tires | Tires | Front | 8.25-15-14PR | 8.25-15-14PR | |||||
| Rear | 8.25-15-14PR | 8.25-15-14PR | |||||||
| Tread | Front Q | mm | 1470 | 1470 | |||||
| Rear S | mm | 1700 | 1700 | ||||||
| Wheelbase F | MM | 2250 | 2250 | ||||||
| Ground clearance(no load/full load) H | mm | 200 | 200 | ||||||
| Drive units & control | Transmissions | Type | Hydraulic | Hydraulic | |||||
| Shift | Fwd/Rwd | 2/2 | 2/2 | ||||||
| Operating pressure | Mpa | 17 | 17 | ||||||
| Battery | V/AH | 2*12/100 | 2*12/100 | ||||||
| Engine Options | Engine Code Name | WF | CY | W | M | ||||
| Model | WEIFANG R4105G32 | ZHAOCAI 6102BG6 | ISUZU A-6BG1QC-02 | MITSUBISHI S6S-T | |||||
| Rated output | kw/rpm | 59/2400 | 80.9/2500 | 82.3/2000 | 63.9/2300 | ||||
| Rated torque | N.m/rpm | 270/1600 | 353/1600 | 416/1400-1600 | 299/1600 | ||||
| No.of cylinder | 4 | 6 | 6 | 6 | |||||
| Bore×stroke | mm | 105*125 | 102*118 | 105*125 | 94*120 | ||||
| Displacement | cc | 4330 | 5785 | 6494 | 4996 | ||||
| Fuel tank capacity | L | 120 | 140 | 140 | 140 | ||||
| Remark: | |||||||||
| 1. Special lifting height available. | |||||||||
| 2. Attachment available. | |||||||||
| 3. The specification in the table are for standard models only . For further information ,please contact us. | |||||||||
Wide, comfortable, safety
Wide operation environment with people oriented seat,reducing operator's fatigue.
Adjustable steering wheel and new type multifunctional instrument.
Posted double lifting cylinder brings wide front vision and high working efficiency.
Nice
Streamlined body design,brings nice appearance;antiskid sides pedal,brings convenient operation.
Smart
Horizontal swing cylinder and swing axle with shock absorber brings a compact and smart structure.
Convenient
Front and back open engine cover,brings a cool and quiet engine;main parts are all in a maintainable place,brings a easy maintained forklift.
Clean
The dual air filter is optional according to the requirement of customer.
Air vent is in the top of machine,ensuring clean air supply and long using life of machine.
