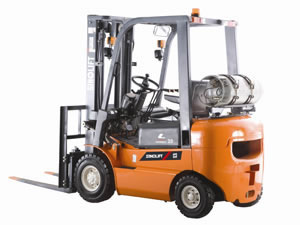

العربيةL Series 2-3.5T Gas LPG Forklift
The machine body is designed with big arc streamline and fitted with open anti-slippage pedal. High position air suction inlet is fitted behind the top protection frame above the column to ensure the engine absorbs clean air and prolong the service life. The engine hood has functions of sound absorption and heat isolation.
Rear in-built dual lifting cylinder is used, wide visual view, safety operation and high efficiency.
A hydraulic converter produced by introduction of japanese technology, high efficiency, no oil leakage, reliable work, compact structure of hydraulic transmission, shift gear valve, micromotion valve, characterized by smooth starting, stepless speed adjustment, micromotion and acceleration performance.
Full hydraulic steering gear, transverse cylinder, steering axle integrated into one body, flexible steering, compact structure and convenient repair.
Adjustable driver's seat, reducing operation fatigue to a maximum extent. Tilt lifting steering wheel and new type multifunctional panel fully represents harmony between the machine and human.
Imported sealing parts are used in the cylinder, cone sealing used in fittings, good sealing performance, long service life; multiple reversing valve with automatic tilt locking device, advanced structure to meet safety requirement.
The L Series LPG forkift has been designed to ensure miniumum servicing. A coolant based system helps you monitor the brake fluid. And a unique testing facility helps you check the functioning of the LED indicators on the dashboard panel.
Beautiful appearance, quick and smooth lifting, high high productivity, it is an ideal loading and unloading machine for stations, ports, docks, warehouse, warehouse, airports and factories etc which need low noise and small smoke.
| Generals | Manufacture | SINOLIFT 2.0-3.5T Gas/LPG Forklift Specifications | ||||||
| Model | CPQ(D)20-WF CPY(D)20-WF | CPQ(D)25-WF CPY(D)25-WF | CPQ(D)30-WF CPY(D)30-WF | CPQ(D)35-WF CPY(D)35-WF | ||||
| CPQ(D)20-H1 CPY(D)20-H1 | CPQ(D)25-H1 CPY(D)25-H1 | CPQ(D)30-H2 CPY(D)30-H2 | CPQ(D)35-H2 CPY(D)35-H2 | |||||
| CPQ(D)20-H2 CPY(D)20-H2 | CPQ(D)25-H2 CPY(D)25-H2 | CPQ(D)30-R CPY(D)30-R | CPQ(D)35-R CPY(D)35-R | |||||
| CPQ(D)20-R CPY(D)20-R | CPQ(D)25-R CPY(D)25-R | ***** | ***** | |||||
| Power type | Gasoline LPG | Gasoline LPG | Gasoline LPG | Gasoline LPG | ||||
| Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | |||
| Load center | mm | 500 | 500 | 500 | 500 | |||
| Dimensions | Lift height | mm | 3000 | 3000 | 3000 | 3000 | ||
| Free lift height E | mm | 140 | 140 | 145 | 145 | |||
| Fork size N×U×L | mm | 1070*120*40 | 1070*100*45 | 1070*125*45 | 1070*130*45 | |||
| Mast tilt angle α / β | deg | 6/12 | 6/12 | 6/12 | 6/12 | |||
| Front overhang A2 | mm | 482 | 482 | 501 | 501 | |||
| Overall dimensions | Length to face of fork A1 | mm | 2510 | 2580 | 2720 | 2720 | ||
| Overall width B1 | mm | 1150 | 1150 | 1225 | 1225 | |||
| Mast lowered height H1 | mm | 1995 | 1995 | 2070 | 2070 | |||
| Mast extended height H3 | mm | 4037 | 4037 | 4272 | 4272 | |||
| Overhead guard height H2 | mm | 2060 | 2060 | 2090 | 2090 | |||
| Turning radius R | mm | 2170 | 2240 | 2460 | 2540 | |||
| Min. right angle aisle width X | mm | 1920 | 2010 | 2110 | 2190 | |||
| Performance | Travel speed (full load/no load) | Hydraulic | km/h | 18/19 | 18/19 | 18/19 | 18/19 | |
| Mechanical | Shift I | 8.5/9 | 8.5/9 | 8.5/9 | 8.5/9 | |||
| Shift II | 18.5/19 | 18.5/19 | 18.5/19 | 18.5/19 | ||||
| Lift speed (full load) | mm/sec | 450 | 450 | 400 | 360 | |||
| Max. gradeability | % | 20 | 20 | 18 | 15 | |||
| Self weight | kg | 3550 | 3880 | 4380 | 4750 | |||
| Wheel & Tires | Tires | Front | 7.00-12-12PR | 7.00-12-12PR | 28X9-15-14PR | 28X9-15-14PR | ||
| Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | ||||
| Tread | Front B2 | mm | 970 | 970 | 1000 | 1000 | ||
| Rear B3 | mm | 970 | 970 | 970 | 970 | |||
| Wheelbase A3 | mm | 1600 | 1600 | 1700 | 1700 | |||
| Ground clearance (full load/no load) | Mast M | mm | 85/105 | 85/105 | 110/135 | 110/135 | ||
| Frame F | 100/105 | 100/105 | 130/135 | 130/135 | ||||
| Drive units & control | Engine | Engine Name Code | F1 | H1 | H2 | R | ||
| Model | WANFENG WF491GP | NISSAN H20 (K21) | NISSAN H25(K25) | MITSUBISHI 4G64-31ZG | ||||
| Rated output | kw/rpm | 41/2800 | 36.8/2600 | 44/2500 | 37/2500 | |||
| Rated torque | N.m/rpm | 161/2000 | 152/1600 | 179/1600 | 161/1600 | |||
| No.of cylinder | 4 | 4 | 4 | 4 | ||||
| Bore×stroke | mm | 91*86 | 87.2*83 | 92*93 | 86.5*100 | |||
| Displacement | L | 2.237 | 1.982 | 2.472 | 2.35 | |||
| Remark: | ||||||||
| 1. Special lifting height available. | ||||||||
| 2. Attachment available. | ||||||||
| 3. The specification in the table are for standard models only . For further information ,please contact us. | ||||||||
