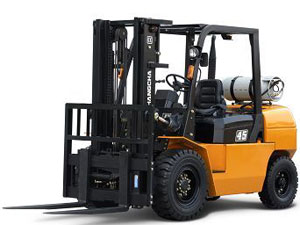

L Series 4-5T LPG Forklift

Home » Products » Forklift Truck » L series I.C. Forklift » L Series 4-5T LPG Forklift

1. Towing Tractor
2. Electric Platform Truck

Related Products

Appearance
The latest appearance design method was used to create the R series fluent and aesthetic outline, which matches the latest appearance trend.

Efficiency
Thanks to the long wheelbase design, the longitudinal stability of whole truck is much better, the hoisting capacity at same lift height are enhanced by an average of 100KG compared with former truck. At the same time, it prolongs work time of rear wheel as the reduced rear axle's load.
The travel speed of truck has been raised, for example, the 2-2.5T type comes to 20km/h.

Service
Dual air spring supporting hood and one-touch removal of the floorboard get you right to service operations, and reduces down-time.
The reasonable arrangement of fuse and installation of instrument, enable the replacing for fuse and maintenance for instrument easier.

Clean
The environment friendly engines all meet EU stage-2 emission control regulation. The noise emission also comes to EU standard.
The metal hood and molding sound insulation matches environmental protection demands.

Safe
A throttling device is set in pipe system, the mast won't result in failing control of mast even some pipes broke.
By using a built-in hood lock device, the safe level of the truck has been raised.

General	Manufacture			SINOLIFT 4.0-5.0T LPG Forklift Specifications
	Basic model				CPYD40-GM	CPYD45-GM	CPYD50-GM
	Type				RW17-Y	RW17-Y	RXW17-Y
	Power type				LPG	LPG	LPG
	Rated capacity			Kg	4000	4500	5000
	Load center			mm	500	500	500
Dimensions	Lift height			mm	3000	3000	3000
	Free lift height			mm	160	160	160
	Fork size	L×W×T		mm	1070×150×50	1070×150×50	1070×150×55
	Mast tilt range	F/R		deg	6/12	6/12	6/12
	Fork overhang(Wheel center to fork face)			mm	550	550	550
	Rear overhang			mm	520	560	560
	Overall	Length to face of fork		mm	3070	3110	3215
	dimensions	Overall width		mm	1395	1395	1490
		Mast lowered height		mm	2245	2245	2395
		Mast extended height		mm	4175	4170	4320
		Overhead guard height		mm	2250	2250	2250
	Turning radius(outside)			mm	2690	2720	2810
	Min. right angle stacking aisle width			mm	3240	3270	3360
	(Add load length and clearance)			mm	3240	3270	3360
Performance	Speed	Travel(no load )		Km/h	26	26	26
		Lifting(Full load)		mm/sec	460	460	400
		Lowering(Full load)		mm/sec	500	500	500
	Max. Drawbar Pull(Full load)			N	39300	39300	39300
	Max. gradeability(Full load)			%	20	20	20
Wheels&tires	Tyres	Front			8.25-15-14PR	300-15-14PR	300-15-14PR
	Tyres	Rear			7.00-12-12PR	7.00-12-12PR	7.00-12-12PR
	Tread	Front		mm	1160	1190	1190
	Tread	Rear		mm	1130	1130	1130
	Wheelbase			mm	2000	2000	2100
	Ground clearance	Lowest		mm	170	170	170
	Ground clearance	Wheelbase center		mm	230	230	230
Weight	Self weight			Kg	6300	6500	6600
	Weight Distribution	Full load	Front/Rear	Kg	9000/1300	9625/1375	10125/1475
	Weight Distribution	No load	Front/Rear	Kg	2800/3500	2820/3680	2820/3780
Power&transmission	Battery	Voltage/Capacity(20HR)			12/70/20H	12/70/20H	12/70/20H
	Engine	Engine Name Code			GM	GM	GM
		Model			GM4.3L	GM4.3L	GM4.3L
		Manufacture		V/AH	GM	GM	GM
		Rated output/r.p.m.		kw	74/2300	74/2300	74/2300
		Rated torque/r.p.m.			301/1600	301/1600	301/1600
		No. of cylinder			6	6	6
		Bore×Stroke		mm	102×88	102×88	102×88
		Displacement		cc	4294	4294	4294
		Fuel tank capacity		L	40	40	40
	Transmissions	Manufacture			CHINA	CHINA	CHINA
		Type			Powershift	Powershift	Powershift
		Stage	FWD/RVS		2/1	2/1	2/1
	Operating pressure	For attachments		MPa	18	18	18
	Remark:
	1. Special lifting height available.
	2. Attachment available.
	3. The specification in the table are for standard models only . For further information ,please contact us.
