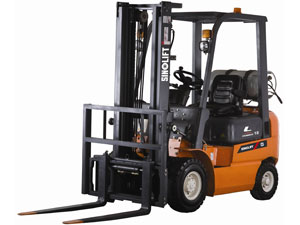

العربيةL Series 1-1.8T Gas LPG Forklift
Gasoline/LPG Forklift Trucks 1.0-1.8t
Lifting Capacity: 1,000 - 1,800kg
Power type: Gasoline
CE, ISO
Standard
Japanese engine: NISSAN K21
Automatic transmission or mechanical transmission
Hydraulic steering/ braking system
Duplex 3000mm wide view mast
920mm length bar type forks
Dual fuel switch, tank
Front & rear wheel pneumatic tyres
Direction light, reverse alarm light
Front & rear combined lamp
Storage box with cup holder
Oil quantity sensor, fuel pressure warning switch
Buzzer, electric horn, mirror, hour meter …
Technology
Excellent cooling system
The wholly integrated frame suspension of chassis
Reliable hydraulic system
Lower gravity
Intelligent buffering system
Newly integrated intelligent instrument
Wide view mast
Excellent LPG tank
Integrated tilt cylinder
A high degree and fully open engine cover
Adjustable steering wheel and Toyota seat
Regular clear electric circuit
Services
Universal parts supply, quick and efficient after-sales service
Highly qualified and experienced engineer service
Long history with excellent reputation
Rich international operation experience
Strict management system
Abundant economic strength
Potential long term cooperation support
Complete and full U-series products
Advanced technology
High-quality and stable performance
Economic and environment-protecting
| General | Manufacturer | SINOLFIT L Series 1.0-1.8T Gas/LPG Forklift Specifications | ||||||
| Model | CPQ(D)10-WF CPY(D)10-WF | CPQ(D)15-WF CPY(D)15-WF | CPQ(D)18-WF CPY(D)18-WF | |||||
| CPQ(D)10-H1 CPY(D)10-H1 | CPQ(D)15-H1 CPY(D)15-H1 | CPQ(D)18-H1 CPY(D)18-H1 | ||||||
| CPQ(D)10-R CPY(D)10-R | CPQ(D)15-R CPY(D)15-R | CPQ(D)18-R CPY(D)18-R | ||||||
| Power type | Gasoline LPG | |||||||
| Rated capacity | kg | 1000 | 1500 | 1750 | ||||
| Load center | mm | 500 | ||||||
| Dimensions | Lift height | mm | 3000 | |||||
| Free lift height E | mm | 164 | ||||||
| Fork size NxUxL | mm | 920×100×40 | 920×100×40 | 1070×120×40 | ||||
| Mast tilt angle α / β | deg | 6/12 | ||||||
| Front overhang A2 | mm | 436 | ||||||
| Overall Dimensions | Overall length | Without fork A1 | mm | 2180 | 2235 | 2270 | ||
| With fork J | 3116 | 3171 | 3356 | |||||
| Overall width Q | Wheel width B1 | mm | 1095 | |||||
| Frame width | 1080 | |||||||
| Mast lowered height H1 | mm | 1995 | ||||||
| Mast extended height H3 | mm | 4038 | ||||||
| Overhead guard height H2 | mm | 2075 | ||||||
| Turning radius R | mm | 1890 | 1960 | 2000 | ||||
| Min. right angle aisle width X | mm | 1720 | 1780 | 1820 | ||||
| Performance | Travel speed | Hydraulic | km/h | 14.5/13.5 | ||||
| (no load/full load) | Mechanical | Shift Ⅰ | 6/5.5 | |||||
| Shift Ⅱ | 14/13.5 | |||||||
| Lift speed (no load/full load) | mm/sec | 510/450 | ||||||
| Max. grade ability | % | 20 | ||||||
| Self weight | kg | 2340 | 2740 | 2943 | ||||
| Wheel & Tires | Tires | Front | 6.50-10-10PR | |||||
| Rear | 5.00-8-8PR | 5.00-8-10PR | 5.00-8-10PR | |||||
| Tread | Front B2 | mm | 890 | |||||
| Rear B3 | mm | 920 | ||||||
| Wheelbase A3 | mm | 1400 | ||||||
| Ground clearance(full load/no load) | Mast M | mm | 95/105 | 85/105 | ||||
| Frame F | 105/115 | |||||||
| Drive units & control | Engine Options | Engine Name Code | WF | H1 | R | |||
| Model | WANFENG WF491GP | NISSAN H20(K21) | MITSUBISHI 4G64 | |||||
| Rated output | kw/rpm | 36.8/2600 | 36.8/2600 | 37/2500 | ||||
| Rated torque | N.m/rpm | 152/1600 | 152/1600 | 161/1600 | ||||
| No. of cylinder | 4 | 4 | 4 | |||||
| Bore×stroke | mm | 87.2x83 | 87.2x83 | 86.5×100 | ||||
| Displacement | L | 1.982 | 1.982 | 2.35 | ||||
| Lubrication oil capacity | L | 3.8 | 3.8 | 3.8 | ||||
