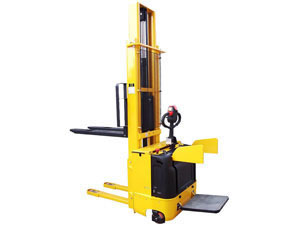

CDD (standard) Full Power Stacker

Related Products

Capacity : 1.2-1.5 ton
Max. Lifting Height : 1.6-3.3 m

Designed for stacking palettes on tacks and transporting goods for short distance
Heavy duty design with C style mast material
Imported electric control system and hydraulic unit
Operating steady and flexible
Low noise, no pollution, and high reliability
International typical style
Can be equipped with Stand-on Platform, Handrail and Germany REMA handle

Model			CDD1.2					CDD1.5
Standard (CDD)			CDD1.2 /16	CDD1.2 /24	CDD1.2 /29	CDD1.2 /31	CDD1.2 /33	CDD1.5 /16	CDD1.5 /24	CDD1.5 /29	CDD1.5 /31	CDD1.5 /33
With Stand-On Platform (CDD-T)			CDD1.2 /16T	CDD1.2 /24T	CDD1.2 /29T	CDD1.2 /31T	CDD1.2 /33T	CDD1.5 /16T	CDD1.5 /24T	CDD1.5 /29T	CDD1.5 /31T	CDD1.5 /33T
With wide Straddle Leg (CDD-W)			CDD1.2 /16W	CDD1.2 /24W	CDD1.2 /29W	CDD1.2 /31W	CDD1.2 /33W	CDD1.5 /16W	CDD1.5 /24W	CDD1.5 /29W	CDD1.5 /31W	CDD1.5 /33W
Capacity Q		Kg	1200					1500
Max Lifting Height H₃		mm	1600	2450	2900	3100	3300	1600	2450	2900	3100	3300
Max Height of Stacker h₄		mm	2244	3094	3544	3744	3944	2244	3094	3544	3744	3944
Net Weight (without battery)	CDD	Kg	613	670	692	705	713	620	677	699	712	720
Net Weight (without battery)	CDDT	Kg	624	680	702	715	724	624	680	702	715	724
Load Center C	CDD,CDDT	mm	600
Min Height of Forks	CDD,CDDT	mm	90
Fork Length	CDD,CDDT	mm	1150 (Steel plate fork)
Fork Width	CDD,CDDT	mm	540
Fork Width N	CDD,CDDT	mm	160
Length of stacker	CDD	mm	1930
Length of stacker	CDDT	mm	2424
Width of Stacker B	CDD,CDDT	mm	840			940		840			940
Height of Stacker	CDD,CDDT	mm	2090	1800	2025	2125	2225	2090	1800	2025	2125	2225
Min Turning Radius	CDD	mm	1525
Min Turning Radius	CDDT	mm	2000
Battery			240AH/24V 200Kg
