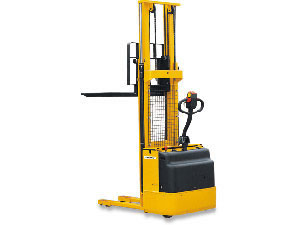

CDD-B (wide-view) Full Power Stacker

Related Products

Capacity : 1.2-1.5 ton
Max. Lifting Height : 2.45-3.3 m

Designed for stacking palettes on tacks and transporting goods for short distance.
1. Reinforced heavy duty mast material
2. Double cylinder are mounted on both side for wide view while loading and transporting.
3. Low noise, no pollution, and high reliability
4. Imported electric control unit and hydraulic unit made in Europe.
5. High stability and good operating flexibility
6. Traditionally international style

Model			CDD1.2B					CDD1.5B
Standard (CDD-B)			//	CDD1.2B /24	CDD1.2B /29	CDD1.2B /31	CDD1.2B /33	//	CDD1.5B /24	CDD1.5B /29	CDD1.5B /31	CDD1.5B /33
With Stand-On Platform (CDD-B-T)			//	CDD1.2B /24T	CDD1.2B /29T	CDD1.2B /31T	CDD1.2B /33T	//	CDD1.5B /24T	CDD1.5B /29T	CDD1.5B /31T	CDD1.5B /33T
With wide Straddle Leg (CDD-B-W)			CDD1.2B /16W	CDD1.2B /24W	CDD1.2B /29W	CDD1.2B /31W	CDD1.2B /33W	CDD1.5B /16W	CDD1.5B /24W	CDD1.5B /29W	CDD1.5B /31W	CDD1.5B /33W
Capacity G		kg	1200					1500
Load Center C	CDD-B, CDD-B-T	mm	//	600				//	600
Load Center C	CDD-B-W	mm	500	500				500	500
Min.Fork height h	CDD-B, CDD-B-T	mm	//	85				//	85
Min.Fork height h	CDD-B-W	mm	65	65				65	65
Max. Lifting Height H3		mm	1600	2450	2900	3100	3300	1600	1600	2900	3100	3300
Max .Height of Stacker h₄	CDD-B, CDD-B-T	mm	//	3094	3544	3744	3944	//	3094	3544	3744	3944
Max .Height of Stacker h₄	CDD-B-W	mm	2460	3310	3760	3960	4160	2460	3310	3760	3960	4160
Height of Stacker h1	CDD, CDD-T	mm	//	1800	2025	2125	2225	//	1800	2025	2125	2225
Height of Stacker h1	CDD-W	mm	2166	1876	2101	2201	2301	2166	1876	2101	2201	2301
Length of stacker L	CDD-B	mm	2073	2073
	CDD-B-T	mm	2567	2567
	CDD-B-W	mm	1972	1972
Fork Length I	CDD-B, CDD-B-T	mm	//	1150 (Steel plate forks)
Fork Length I	CDD-B-W	mm	1000 (Forged plate forks)	1000 (Forged plate forks)
Fork Width A	CDD-B, CDD-B-T	mm	540
Fork Width A	CDD-B-W	mm	230-790
Single Fork Width N	CDD-B, CDD-B-T	mm	160
Single Fork Width N	CDD-B-W	mm	100
Width of Stacker B	CDD-B, CDD-B-T	mm	860
Width of Stacker B	CDD-B-W	mm	940	940	940	1080	1080	940	940	940	1080	1080
Overall width of legs B1	CDD-B, CDD-B-T	mm	700
Overall width of legs B1	CDD-B-W	mm	1197~1502 (Adjustable)
Turning Radius Wa	CDD-B, CDD-B-T	mm	1560
Turning Radius Wa	CDD-B-W	mm	1533	1533	1533	1548	1548	1533	1533	1533	1548	1548
Motors	Traveling	kw/V	1.2/24
Motors	Lifting	kw/V	2.2/24
Travelling Speed With/Without Load		km/h	4.0/5.5
Lifting Speed With/Without Load		mm/s	95/122
Lowering Speed With/Without Load		mm/s	110/60
Double Front Wheel		mm	Φ78x70
Balance Wheelr		mm	Φ150x75
Drive Wheel		mm	Φ250x80
Battery ( Service Free)		Ah/V	200/24
Option Traction Battery		Ah/V	240/24
Net Weight (without battery)	CDD-B	kg	//	730	758	770	782	//	780	808	820	832
	CDD-B-T	kg	//	733	762	773	785	//	783	812	823	835
	CDD-B-W	kg	820	885	895	905	910	870	935	945	905	960
