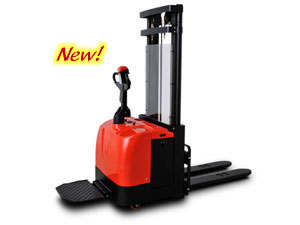

العربيةES16-EX Full Power Stacker
1. Durable and rigid frame construction ensure the stackers to handle heavy loads.
2. Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.
3. Sideway battery exchange to reduce intervals,ensure working efficiency and productivity.
4. A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.
5. Tilter head ergonomically designed for maximum opertor comfortable,and control buttons positioned to allow operation with either hand.
6. limit switch mounted on top of mast to precisely set the max.Lifting height,avoid any risk of lifting motor overload.
7. Robust and rigid mast configuration optimize stackers lifting stability and safety.
8. Safe Grid covered on the mast to protect operator from any injured risk.
| Characteristics | Model | ES1625EX | ES1630EX | ES1633EX | ES1636EX | ES1640EX | ES1642EX | ES1645EX | ES1650EX | ||
| Rated capacity | kg | 1600 | 1600 | ||||||||
| Load center distance | mm | 600 | 600 | ||||||||
| Type of Operation | Pedestrian/Standing | Pedestrian/Ride seated | |||||||||
| Dimensions | Max lift height | mm | 2500 | 3000 | 3300 | 3600 | 4000 | 4200 | 4500 | 5000 | |
| Mast Lowest height | mm | 55 | 55 | 55 | 85 | 85 | 85 | ||||
| Standard fork (L×W) | mm | 1070×100 | 1070×100 | 1070×100 | 1150×550 | 1150×550 | 1150×550 | ||||
| Min turning radius | mm | 1482 | 1482 | 1465 | 1465 | 1465 | 1680 | ||||
| Min aisle width | mm | 2780 | 2885 | ||||||||
| Min clearance | mm | 50 | 50 | 30 | 30 | 30 | 30 | ||||
| Max travel speed | laden | km/h | 3/5 | 3/5 | |||||||
| Performance | unladen | km/h | 3/5 | 3/5 | |||||||
| Max lifting speed | laden | mm/s | 130 | 130 | |||||||
| unladen | mm/s | 230 | 230 | ||||||||
| Max lowing speed | laden | mm/s | 130 | 130 | |||||||
| unladen | mm/s | 230 | 230 | ||||||||
| Gradeability | laden | % | 5 | 5 | |||||||
| unladen | % | 7 | 7 | ||||||||
| Overall length | mm | 1875 | 1980 | ||||||||
| Body length | mm | 765 | 840 | ||||||||
| Body width | mm | 850 | 895 | ||||||||
| Body width | mm | 830 | 830 | ||||||||
| Max mast height | mm | 3500/3800/4100/4400 | 4980/5180 | ||||||||
| Overall static state height | mm | 1980/2135/2335/2500 | 1985 | 2085 | 2235 | ||||||
| Type of wheels (front/rear) | PU | PU | |||||||||
| Wheel | Num of wheels | one drive wheel+two balanced wheels +four support wheels | |||||||||
| types | Wheelbase | mm | 1307 | 1390 | |||||||
| Brakes | Type | electromagnetic | electromagnetic | ||||||||
| Motor | Travel | KW | AC 1.5 | AC 1.5 | |||||||
| Lifting | KW | DC 3 | DC 3 | ||||||||
| Battery | Voltage | V | 24 | 24 | |||||||
| Capacity | Ah | 280 | 280 | ||||||||
| Controller | Control/ model/ specification | CURTIS/1230/200A | CURTIS/1230/200A | ||||||||
| Steering | Electric power steering | ||||||||||
| Remarks: Mast can be ordered with your requirements | |||||||||||
