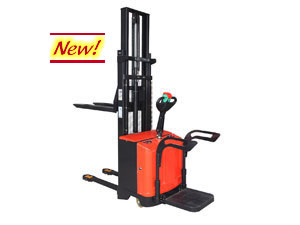

العربيةFSEM (new) Full Power Stacker
Characteristic:
1. Stand-on stacker is the ideal all round truck for loading and unloading from ground level, internal transfer, stacking and order picking combined with stacking.
2. These compact pedestrian stackers are highly versatile, providing low cost solutions for medium height stacking applications, short, medium and long distance travel, unloading and occasional order picking.
3. With the fastest travel, lift and lowering speed, excellent stability and highly compact, UMHT stand-on stackers are extremely space efficient and able to work in very small stacking aisles as the operator is housed within the truck. They also provide the operator with better performance and a safer working environment.
4. More powerful: Large battery capacity enables these powerful vehicles to work easily through a shift, with ergonomically designed controls for maximum operator comfort and specially shaped narrow forks for precise and rapid pallet entry.
5. More safety: Robust construction includes metal sides to help absorb knocks, while a modular format enables components to be shared across the range for economy and rapid availability. The five wheel design of the TL/FL makes for excellent stability and high residual capacities. Intelligent electronics add to truck control and diagnostics, while the low chassis allows the operator the best view of the forks at all times
SPECIFICATIONS:
1. Rated Towing capacity (kg): 1000, 1500, 2000
2. Lifting Height(mm): 2500, 3000, 3500, 4000, 4500, 5000
3. Controller model: American CURTIS
| Model | |||||||||||||
| Standard (FSEM) | FSEM 10-20 | FSEM 10-25 | FSEM 10-30 | FSEM 10-35 | FSEM 15-20 | FSEM 15-25 | FSEM 15-30 | FSEM 15-35 | FSEM 20-20 | FSEM 15-40 | FSEM 15-45 | FSEM 15-50 | |
| Rated Capacity (Q) | Kg | 1000 | 1500 | 2000 | 1500 | ||||||||
| Load Center (C) | mm | 400 | 600 | ||||||||||
| Max Fork Height (H3) | mm | 2000 | 2500 | 3000 | 3500 | 2000 | 2500 | 3000 | 3500 | 2000 | 4000 | 4500 | 5000 |
| Max Machine Height(H4) | mm | 2560 | 3060 | 3560 | 4060 | 2560 | 3060 | 3560 | 4060 | 2560 | 4560 | 5060 | 5560 |
| Handle Height(H2) | mm | 1450~1460 | 1450~1460 | ||||||||||
| Fork Size(1×n) | mm | 1150*160 | 1150*180 | ||||||||||
| Fork Width(E) | mm | 570 | 680 | ||||||||||
| Min Turning Radius(Wa) | mm | 1620 | 1900 | ||||||||||
| Wheel Base(Y) | mm | 1340 | 1500 | ||||||||||
| Front-Wheel Distance(X) | km/h | 339 | 370 | ||||||||||
| Max.Speed without load | km/h | 4.5~6 | 4.5~6 | ||||||||||
| Max.Speed with load | % | 4~5 | 4~5 | ||||||||||
| Max.Climbing capacity | V/Kw | 8~10 | 8~10 | ||||||||||
| Driving motor | V/Kw | 24/1.2 | 24/1.5 | ||||||||||
| Lifting motor | V/Ah | 24/2~3 | 24/2~3 | ||||||||||
| Aneroid Battery | V/Ah | 12*2/210 | 12*2/240 | ||||||||||
| Charger | V/Ah | 24/20-30 | 24/20-30 | ||||||||||
| Overall Length | mm | 2000 | 2200 | ||||||||||
| Overall Width | mm | 860 | 890 | ||||||||||
| Overall Height | mm | 1580 | 1830 | 2080 | 2330 | 1580 | 1830 | 2080 | 2330 | 1580 | 1920 | 2085 | 2250 |
| Overall Net Weight | kg | 650 | 665 | 680 | 695 | 685 | 695 | 710 | 725 | 690 | 1340 | 1370 | 1400 |
