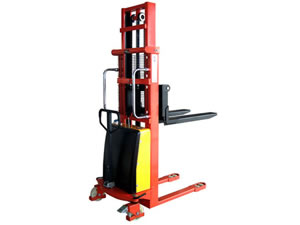

SPN Semi-electric stacker
The product has passed the CE certification.
It is a half electric forklift for load and unload and short-distance transportation
The operation is very easy.
It is reliable. There is no noise and pollution.
The malfunction rate is low.
There are complete specifications for forks to meet the different demands of the customers.
Model | SPN-10 | SPN-15 | SPN-20 | |
Capacity | kg | 1000 | 1500 | 2000 |
Lifting height | mm | 1600/2500/3000/3500 | 1600/2500/3000/3500 | 1600/2000 |
Fork Length | mm | 900-1100 | 900-1100 | 900-1100 |
Fork Width | mm | 330-640 | 330-640 | 330-640 |
Min. Turning Radius | mm | 1280 | 1280 | 1280 |
Overall Length | mm | 1600 | 1600 | 1600 |
Overall width | mm | 710 | 710 | 710 |
Overall height | mm | 2100/1800/2100/2350 | 2100/1800/2100/2350 | 2100/1580 |
Battery | V/Ah | 12/150 | 12/150 | 12/150 |
Min. Height of Forks | mm | 85 | 85 | 85 |
Charger Voltage | V | 220 | 220 | 220 |
Conforms to EN1757-1
Much lighter and easier to handle and is made of high quality German steel to ensure stability and strength.
