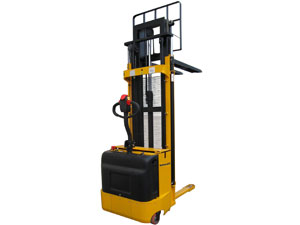

CDD-A hi-lift Full Electric Stacker

Triplex mast 4.5m with free lifting
Capacity 1500kg.
Lifting height 4500mm/5500mm
Full free lifting height 1500mm.
Heavy duty design with top quality mast construction.
Powerful drive wheel and power unit made in Europe.
Top quality electronic control system from Curtis.
Conforms to EN 1757-1:2001, EN1727.
Weight of the battery: 230kg.
can be with platform 480×450mm.

Model			CDD1.2A		CDD1.5A
Standard (CDD-A)			CDD1.2A/45	CDD1.2A/55	CDD1.5A/45	CDD1.5A/55
With Stand-On Platform (CDD-A-T)			CDD1.2A/45T	CDD1.2A/55T	CDD1.5A/45T	CDD1.5A/55T
With wide Straddle Leg (CDD-A-W)			CDD1.2A/45W	CDD1.2A/55W	CDD1.5A/45W	CDD1.5A/55W
Capacity Q		kg	1200		1500
Load Center C		mm	600
Min. Fork Height		mm	90
Max. Lifting Height H₃		mm	4500	5500	4500	5500
Free Lifting Height		mm	1550	1717	1550	1717
Min. Height of Stacker h1		mm	2175	2508	2175	2508
Max .Height of Stacker h4		mm	5373	6373	5373	6373
Fork Length		mm	1150
Overall Length L	CDD-A,CDD-A-T	mm	2175
	CDD-A-W	mm	2507
Overall Width B	CDD-A,CDD-A-T	mm	940
	CDD-A-W	mm	1080
Single fork width N	CDD-A,CDD-A-T	mm	160
	CDD-A-W	mm	100
Fork Width M	CDD-A,CDD-A-T	mm	560 steel plate forks
	CDD-A-W	mm	200-950mm adjustable forged plate forks
Overal width of legs	CDD-A,CDD-A-T	mm	720
	CDD-A-W	mm	1197-1502
Min.Turning Radius		mm	1525
Traveling speed (Loaded/Unloaded)		km/h	5.2/6.8
Lifting speed (Loaded/Unloaded)		mm/s	127/170
Lowering speed (Loaded/Unloaded)		mm/s	150/128
Motor	Traveling	kw/v	1.2/24
	Lifting	kw/v	3.0/24
Front wheel		mm	Φ78x70
Balance wheel		mm	Φ150x75
Drive wheel		mm	Φ250x80
Battery		Ah/V	240/24 230kg
Battery Charger		V/A	24/30
Net Weight (without battery)	CDD-A	kg	1530	1548	1630	1648
	CDD-A-T	kg	1533	1552	1633	1652
	CDD-A-W	kg	1580	16000	1683	1700

Remark:
1,CDD-A and CDD-A-T can be equipped with adjustable forged forks, the adjustable width scope will be from 340~ 740mm
2,CDD-A-W can be equipped with 560x1150mm steel plate forks.
3,The stand-on platform size: 480x450mm.
4, New tiller REMA,Germany is optional.
