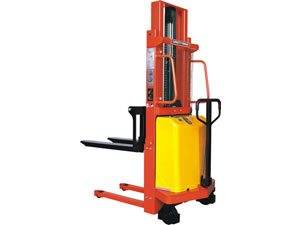

CTD Semi-electric stacker

This Stacker is mobile, with easy pushing or pulling by hand. All wheels are provided with double ball bearings with dust covers.

Lifting & Lowering of forks is done by the hand lever placed on the front cover. The lifting Forks are easily adjustable to decrease or increase the width as above, required for Pallets as available with user.

High quality Power pack with minimum & easy maintenance is designed for these type of stackers. Battery meets international standards and to charge the battery, 220 V AC Power supply is required to battery charger. A digital display of Battery Charging is provided on the front cover which shows sharging position of Battery while using or charging the Battery.

Excellent after sale service and parts are available over the shelf.

Model No.		CTD 1000-16	CTD 1500-16	CTD 2000-16	CTD 1000-20	CTD 1000-25	CTD 1000-30	CTD 1000-35	CTD 1500-20	CTD 1500-25	CTD 1500-30	CTD 1500-35	CTD 2000-20
Rated Capacity(Q)	Kg	1000	1500	2000	1000	1000	1000	1000	1500	1500	1500	1500	2000
Mast		Single Mast			2-stage Mast
Lifting Height(H)	Mm	1600	1600	1600	2000	2500	3000	3500	2000	2500	3000	3500	2000
Fork Length(L)		1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1100
Fork Width(E)		300~680	300~680	300~680	310-820	310-820	310-820	310-820	310-820	310-820	310-820	310-820	330-640
Load Center(C)		400	400	400	400	400	400	400	400	400	400	400	400
Minimum Turning Radius(R)		1350	1350	1350	1350	1350	1450	1450	1350	1350	1450	1450	1280
Lifting Motor	V/Kw	12/1.5 -1.6	12/1.5 -1.6	12/1.5 -1.6	12/1.5 -1.6	12/1.5 -1.6	12/1.5 -1.6	12/1.5 -1.6	12/1.5 -1.6	12/1.5 -1.6	12/1.5 -1.6	12/1.5 -1.6	12/1.5 -1.6
Battery	V/Kh	12/120	12/120	12/120	12/120	12/120	12/120	12/120	12/150	12/150	12/150	12/150	12/150
Charger	V/Kh	12/15	12/15	12/15	12/15	12/15	12/15	12/15	12/15	12/15	12/15	12/15	12/15
Overall Length(A)	Mm	1670	1670	1670	1670	1670	1700	1700	1670	1670	1700	1700	1600
Overall Width(B)		865	865	865	810	810	930	930	810	810	930	930	710
Overall Height(H1)		2060	2060	2060	1580	1830	2080	2330	1580	1830	2080	2330	1580
Net Weight	Kg	340	362	388	424	446	468	490	448	470	492	515	380
