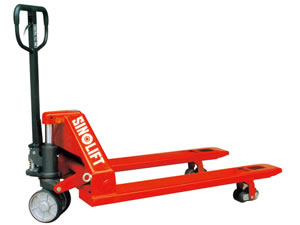

NPV50 Heavy-duty Pallet Truck

Heavy duty design for moving heavy load.
Unique hydraulic pump and large position with less effort to lift heavy load easily.
Its independent oil storage room ensures good loqkproofness.
210 degree steering angle allows maximum maneuverability.
Available Ex stock in special design.

MODEL		NPV35	NPV50
Rated Capacity (Kg)		3500	5000
Width over forks (mm) *1	W	520/550/685	520/550/685
Fork length (mm) *1	L	1070/1150/1220	1070/1150/1220
Min. Fork Height (mm)	H2	80	80
Max. Fork Height (mm)	H1	200	200
Steering Wheel (mm) *2	A	200x62	200x62
Load Wheel (mm) *3	B	78x70 (Tandem)	78x70 (Tandem)
Weight (kg)		80	83
Under Clearance (mm)		40	40
Fork width (mm)	W2	160	160
Stroke length (mm/stroke)		10	10
Overall Height (mm)		1248	1248
Steer Angle		210 deg	210 deg
Drive Unit Length (mm)		400	400

*1 W and L with over width and over length can be made according to customer's requirement.
*2 180x62 steering wheel is optional.
*3 The 78*100mm single load wheels are optional
