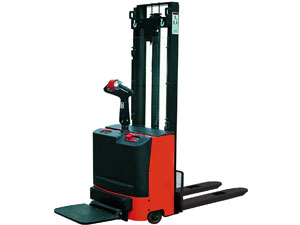

CL Full Electric Stacker
Smooth travel and lift with excellent controls to reduce product damages and increases productivity.
Lift limit switch operates at maximum lift height to shut off pump motor.
A heavy-duty 24-volt electrical system provides good travel and lift speeds.
High quality hydraulic pump assures very little noise, maximum efficiency and durability.
Drive units is equipped with an electromagnetic brake that is spring applied and electrically release. Brake is activated by the control handle position. The handle ergonomically designed with a raising, lowering and horn bottom.
Speed automatically reduces when driving with the forks at a height of 12" or higher.
Small turn radius makes it suitable for narrow passage ways.
The CURTIS electronic controller helps provide plenty of low end torque while increasing the motor and battery lift.
Foot pedal reduces fatigue.
Conforms to EN 1726-1 and EN 1175-1
| Identification | Model | | CL1212 | CL1217 | CL1226 | CL1232 | CL1032 |
| Drive:electric(battery or mains),diesel, petrol,fuel gas,manual | | Electric |
| Type of operation:hand,pedestrian, | | Pedestrian |
| standing,seated, order-picker) |
| Load Capacity /rated load | Q(t) | 1.2 | 1 |
| Load center distance | C mm | 600 |
| Load distance, centre of drive axle to fork | X mm | 677 | 692 |
| Wheelbase | y mm | 1160 |
| Weights | service Weight | Kg | 750 | 785 | 860 | 885 | 865 |
| Axle loading,laden front/rear | Kg | 925/1025 | 940/1045 | 980/1080 | 990/1095 | 885/980 |
| Axle loadings, unladen front/rear | Kg | 550/200 | 580/205 | 635/225 | 655/230 | 640/225 |
| Wheels, | Tyres:solid rubber,superelastic, pneumatic, polyurethane) | | polyurethane |
| Chassis | Tyre size, front | | 250x78 |
| Tyre size, rear | | 80x70 1) |
| Additional wheels(dimensions) | | 150x54 |
| Wheels, numberfront/rear(x=driven wheels) | | 1x+2/4 |
| Track width,front | b10(mm) | 685 |
| Track width,rear | b11(mm) | 390/515 |
| Basic Dimensions | Lowered mast height | h1(mm) | 1565 | 2076 | 1795 | 2095 | 2095 |
| Free lift | h2(mm) | - | - | 144 | 144 | 144 |
| Lift height | h3(mm) | 1114 | 1614 | 2514 | 3114 | 3114 |
| Extended mast height | h4(mm) | 1565 | 2076 | 2982 | 3582 | 3582 |
| Height of tiller in drive position min./max. | h14(mm) | 985/1365 |
| Lowered height | h13(mm) | 86 |
| Overall length | l1(mm) | 1908 | 1893 |
| Length to face of forks | l2(mm) | 758 | 743 |
| Overall width | b1(mm) | 805 |
| Fork dimensions | s/e/l(mm) | 60/80/1150 |
| Width over forks | b5(mm) | 570/695 |
| Ground clearance, center of wheelbase | m2(mm) | 26 |
| Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2340 | 2335 |
| Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2320 | 2306 |
| Turning radius | Wa(mm) | 1460 |
| Performance Data | Travel Speed, laden/unladen | km/h | 5.2/5.5 |
| Lift speed, laden/unladen | mm/s | 105/150 |
| Lowering speed, laden/unladen | mm/s | 100/95 |
| Max.gradient performance, laden/unladen | % | 6月12日 |
| Service brake | | Electromagnetic |
| E-Motor | Drive motor rating s2 60min | kw | 1.2 |
| Lift motor rating at s3 15% | kw | 2.2 |
| Battery acc. To DIN, no | | 3PZS |
| Battery voltage, norminal capacity | V/Ah | 24/210 |
| Others | Type of drive control | | MOSFET Control |
| Sound level at driver’s ear acc.to EN12053 | dB(A) | 67 |
| Identification | Model | | CL1529 | CL1529FFL | CL1534 | CL1534FFL |
| Drive:electric(battery or mains),diesel, petrol,fuel gas,manual | | Electric |
| Type of operation:hand,pedestrian, | | Pedestrian |
| standing,seated, order-picker) |
| Load Capacity /rated load | Q(t) | 1.5 |
| Load center distance | C mm | 600 |
| Load distance, centre of drive axle to fork | X mm | 678 |
| Wheelbase | y mm | 1183 | 1168 |
| Weights | service Weight | Kg | 1020 | 1040 | 1120 | 1140 |
| Axle loading,laden front/rear | Kg | 1195/1325 | 1205/1335 | 1245/1375 | 1225/1385 |
| Axle loadings, unladen front/rear | Kg | 755/265 | 770/270 | 825/295 | 840/300 |
| Wheels, | Tyres:solid rubber,superelastic, pneumatic, polyurethane) | | polyurethane |
| Chassis | Tyre size, front | | 250x78 |
| Tyre size, rear | | 80x70 1) |
| Additional wheels(dimensions) | | 150x54 |
| Wheels, numberfront/rear(x=driven wheels) | | 1x+2/4 |
| Track width,front | b10(mm) | 685 |
| Track width,rear | b11(mm) | 390/515 |
| Basic Dimensions | Lowered mast height | h1(mm) | 1950 | 1950 | 1695 | 1695 |
| Free lift | h2(mm) | 144 | 1472 | - | 1104 |
| Lift height | h3(mm) | 2814 | 2814 | 3314 | 3314 |
| Extended mast height | h4(mm) | 3298 | 3303 | 3943 | 3943 |
| Height of tiller in drive position min./max. | h14(mm) | 985/1365 |
| Lowered height | h13(mm) | 86 |
| Overall length | l1(mm) | 1940 | 1925 |
| Length to face of forks | l2(mm) | 790 | 775 |
| Overall width | b1(mm) | 805 |
| Fork dimensions | s/e/l(mm) | 60/80/1150 |
| Width over forks | b5(mm) | 570/695 |
| Ground clearance, center of wheelbase | m2(mm) | 26 |
| Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2360 | 2345 |
| Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2340 | 2323 |
| Turning radius | Wa(mm) | 1480 | 1465 |
| Performance Data | Travel Speed, laden/unladen | km/h | 5.1/5.4 |
| Lift speed, laden/unladen | mm/s | 105/170 |
| Lowering speed, laden/unladen | mm/s | 100/95 |
| Max.gradient performance, laden/unladen | % | 6月12日 |
| Service brake | | Electromagnetic |
| E-Motor | Drive motor rating s2 60min | kw | 1.2 |
| Lift motor rating at s3 15% | kw | 3 |
| Battery acc. To DIN, no | | 3PZS |
| Battery voltage, norminal capacity | V/Ah | 24/210 |
| Others | Type of drive control | | MOSFET Control |
| Sound level at driver’s ear acc.to EN12053 | dB(A) | 67 |
