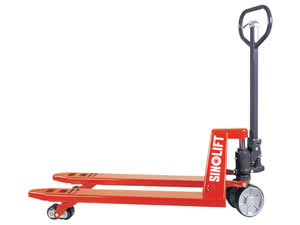

العربيةNP25 Hand Pallet Truck
Characteristic:
1. Simple and Easy Operation
Lifting movement via collapsible foot pedal
Sensitive lowering through sinking valve
Hand push drive
Overload protection via pressure valve
2. Safe Operation and secure Working Conditions
Stable chassis with 2 frame rollers and 2 steering rollers.
3. Long Service Lift.
Robust construction.
Hard chromium plated frame.
Hardened chromium plated ram.
4. Effortless Movement.
Ball bearing rollers.
Polyurethane rollers.
SPECIFICATIONS:
1) Rated capacity (kg): 1500, 2000, 2500, 3000,5000
2) Lifting height (mm): 80-200mm, 65-165mm, 73-175mm, 75-185mm
3) Option: Variety size of Polyurethane, Nylon and Rubber wheel, Single or Tandem wheel
4) Stainless steel or Galvanized type.
| 1, Standard Specification Data | ||||||||
| Model | Capacity | Fork Width | Fork Length | Min. Height | Max. Height | Steer wheel | Load Wheel | Weight |
| kg/lbs | mm/inch | mm/inch | mm/inch | mm/inch | (mm) | (mm) | kg/lbs | |
| W1 | L1 | H2 | H1 | A | B | |||
| NP15-48 | 1500/3300 | 460/18" | 810/32" | 80/3.15" | 200/7.9" | φ180*62 | φ78*100 (single) | 66/145 |
| NP15-49 | 460/18" | 980/38.5" | 70/154 | |||||
| NP15-58 | 520/20.5" | 810/32" | 66/145 | |||||
| NP15-59 | 520/20.5" | 980/38.5" | 70/154 | |||||
| NP15-510 | 520/20.5" | 1070/42" | 71/156 | |||||
| NP15-511 | 520/20.5" | 1150/43.3" | 73/160 | |||||
| NP15-610 | 600/23.5" | 1070/42" | 77/169 | |||||
| NP15-76 | 685/48" | 650/25.6" | 68/149 | |||||
| NP15-710 | 685/27" | 1070/42" | 76/167 | |||||
| NP15-712 | 685/27" | 1220/48" | 79/173 | |||||
| NP25-58 | 2500/5500 | 520/20.5" | 810/32" | 80/3.15" | 200/7.9" | φ180*62 | φ78*100 (single) or φ78*70 (tandem) | 67/147 |
| NP25-59 | 685/27" | 980/38.5" | 71/156 | |||||
| NP25-510 | 685/27" | 1070/42" | 72/158 | |||||
| NP25-511 | 520/20.5" | 1150/43.3" | 75/165 | |||||
| NP25-712 | 685/27" | 1220/48" | 80/176 | |||||
| NP30-510 | 3000/6600 | 520/20.5" | 1070/42" | 80/3.15" | 200/7.9" | φ180*62 | φ78*100 (single) or φ78*70 (tandem) | 84/184 |
| NP30-511 | 520/20.5" | 1150/43.3" | 90/198 | |||||
| NP30-712 | 685/27" | 1220/48" | 100/220 | |||||
| Remark | ||||||||
| 1, 2000kg/4400lbs,3500kg/7700lbs,5000kg/11000lbs capacity are also available, | ||||||||
| 2,Hand brake,food brake and parking brake is optional | ||||||||
| 3,Option: Polyurethane,Nylon or Rubber material wheels, Single load wheel or tandem load wheel; | ||||||||
| 4,Spercial size of width and length can be made according to customer's requirement. | ||||||||
| 5,All specifications and figures are subject to change withou notice for improvement. | ||||||||
