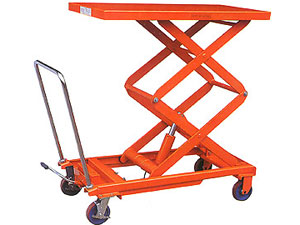

CYTS Manual Table Lift
Valuable material handling for use as a feeding table on assembly line.
Structural heavy duty steel construction.
Easy action foot operated hydraulic lift for raising table top to desired level.
Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
Hand operated table descent control.
Over load by-pass valve protects operator and pump.
Option: chrome plated handle, painted handle, folding handle & solid handle.
Model | CYT350S | CYT750S | CYT1000S | |
Load Capacity | kg | 350 | 750 | 1000 |
Max. Height | mm | 1300 | 900 | 1000 |
Min. Height | mm | 350 | 420 | 380 |
Table Dimension | mm | 910×500×52 | 1000×510×55 | 1016×515×60 |
Handle Height | mm | 970 | 1000 | 960 |
Stroke to Max. Height | stroke | ≤55 | ≤55 | ≤55 |
Wheel Diameter | mm | 127 | 150 | 150 |
Packing Size | mm | 1010×530×390 | 1190×630×460 | 1190×630×420 |
Self-Weight | kg | 110 | 112 | 115 |
