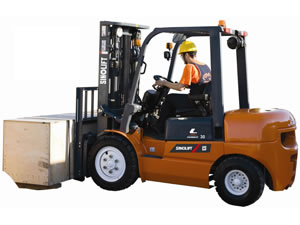

L Series Diesel Forklift

Characteristic:
1. Streamlined exterior and high-strength frame
2. Comfortable driving room and mini steering wheel
3. transverse steering axle as Buffer device
4. Reliable special designed instrument
5. Overhead intake system,Integral hood,effectual in heat insulation and noise reduction
6. Imported diesel and gasoline engines can be option to save energy and increase efficiency.
7. Choose gasoline and LPG as power according to customers’demands

SPECIFICATIONS:
1) Rated capacity (kg): 1500,2000, 2500, 3000, 3500
2) Max lifting height (mm): 3000, 4000, 4500, 4800, 5500, 6000
3) All kinds of attachments for special function available
4)Diesel engine: Japan Isuzu ,Yanmar,Nissan or Chinese engines

Main Technical Specifications

1	Model			CPC20E	CPC25E	CPC30E	CPC35E
2	Power type			diesel	diesel	diesel	diesel
3	Rated capacity		kg	2000	2500	3000	3500
4	Load center			500	500	500	500
5	Lifting height		mm	3000	3000	3000	3000
6	Free lifting height		mm	120	120	120	120
7	Fork size		mm	1100×/130×50	1100×130×50	1100×130×50	1100×130×50
8	Mast tilting angle		deg	6/12	6/12	6/12	6/12
9	Overall length		mm	2495	2565	2725	2890
10	Overall width		mm	1150	1150	1225	1250
11	Mast lowered height		mm	2114	2114	2139	2139
12	Mast extended height		mm	3585	3585	3585	3585
13	Overhead guard height		mm	2090	2090	2140	2140
14	Min.turning radius		mm	2170	2240	2450	2650
15	Speed	Travel speed	kg/h	20	20	20	18
16	Speed	Lifting height	mm/sec	450	450	400	400
17	Max. gradeability		%	19	19	15	15
18	Self weight		kg	3550	4000	4500	5000

SINOLIFT L Series 1.0T-3.5T Diesel Forklift Specifications

Generals	Model				CPC(D)10-X1	CPC(D)15-X1		CPC(D)18-X1	CPC(D)20-X2
					CPC(D)10-W1	CPC(D)15-W1		CPC(D)18-W1	CPC(D)20-W1
					*****	*****		*****	CPC(D)20-W3
					*****	*****		*****	*****
	Power type				Diesel	Diesel		Diesel	Diesel
	Rated capacity			kg	1000	1500		1750	2000
	Load center			mm	500	500		500	500
Dimensions	Lift height			mm	3000	3000		3000	3000
	Free lift height E			mm	164	164		164	140
	Fork size N×U×L			mm	920×100×40	920×100×40		1070×120×40	107012040
	Mast tilt angle α / β			deg	6/12	6/12		6/12	6/12
	Front overhang A2			mm	436	436		436	482
	Overall dimensions	Length to face of fork A1		mm	2180	2235		2270	2510
		Overall width B1		mm	1095	1095		1095	1150
		Mast lowered height H1		mm	1995	1995		1995	1995
		Mast extended height H3		mm	4030	4030		4030	4037
		Overhead guard height H2		mm	2075	2075		2075	2060
	Turning radius R			mm	1890	1960		2000	2170
	Min. right angle aisle width X			mm	1720	1780		1820	1920
Performance	Travel speed (no load / full load)	Hydraulic		km/h	14.5/13.5	14.5/13.5		14.5/13.5	17/19
		Mechanical	Shift I		6/5.5	6/5.5		6/5.5	8.5/9
			Shift II		14/13.5	14/13.5		14/13.5	18.5/19
	Lift speed (full load)			mm/sec	450	450		450	450
	Max. gradeability			%	20	20		20	20
	Self weight			kg	2340	2740		2943	3550
Wheel & Tires	Tires	Front			6.50-10-10PR	6.50-10-10PR		6.50-10-10PR	7.00-12-12PR
		Rear			5.00-8-8PR	5.00-8-10PR		5.00-8-10PR	6.00-9-10PR
	Tread	Front B2		mm	890	890		890	970
		Rear B3		mm	920	920		920	970
	Wheelbase A3			MM	1400	1400		1400	1600
	Ground clearance (full load / no load)		Mast M	mm	95/105	95/105		85/105	85/105
			Frame F		105/115	105/115		105/115	100/105
Drive units	Engine	Apply to truck model			CPC(D)10/15/18-X1		CPC(D)10/15/18-W1		CPC(D)20/ 25-X2
		Model			XINCHAI NB485BPG		ISUZU C240PKJ		XINCHAI 490BPG
		Rated output		kw/rpm	30/2600		34.5/2500		37/2650
		Rated torque		N.m/rpm	131/1800		139/1800		148/1900
		No.of cylinder			4		4		4
		Bore × stroke		mm	85*100		86*102		90*100
		Displacement		L	2.27		2.369		2.54

Generals	Model				CPC(D)25-X2		CPC(D)30-X2		CPC(D)35-X2
					CPC(D)25-W1		CPC(D)30-X3		CPC(D)35-X3
					CPC(D)25-W3		CPC(D)30-W1		CPC(D)35-W1
					*****		CPC(D)30-W2		CPC(D)35-W2
	Power type				Diesel		Diesel		Diesel
	Rated capacity			kg	2500		3000		3500
	Load center			mm	500		500		500
Dimensions	Lift height			mm	3000		3000		3000
	Free lift height E			mm	140		145		145
	Fork size N×U×L			mm	107010045		107012545		107013045
	Mast tilt angle α / β			deg	6/12		6/12		6/12
	Front overhang A2			mm	482		501		501
	Overall dimensions	Length to face of fork A1		mm	2580		2720		2720
		Overall width B1		mm	1150		1225		1225
		Mast lowered height H1		mm	1995		2070		2070
		Mast extended height H3		mm	4037		4272		4272
		Overhead guard height H2		mm	2060		2090		2090
	Turning radius R			mm	2240		2460		2460
	Min. right angle aisle width X			mm	2010		2110		2190
Performance	Travel speed (no load / full load)	Hydraulic		km/h	17/19		17/19		17/19
		Mechanical	Shift I		8.5/9		8.8/9		8.8/9
			Shift II		18.5/19		18.5/20		18.5/20
	Lift speed (full load)			mm/sec	450		400		360
	Max. gradeability			%	20		18		15
	Self weight			kg	3880		4380		4750
Wheel & Tires	Tires	Front			7.00-12-12PR		28*9-15-14PR		28*9-15-14PR
		Rear			6.00-9-10PR		6.50-10-10PR		6.50-10-10PR
	Tread	Front B2		mm	970		1000		1000
		Rear B3		mm	970		970		970
	Wheelbase A3			MM	1600		1700		1700
	Ground clearance (full load / no load)		Mast M	mm	85/105		110/135		110/135
			Frame F		100/105		130/135		130/135
Drive units	Engine	Apply to truck model			CPC(D)20/ 25-W1	CPC(D)20/ 25-W3	CPC(D)30/ 35-X2	CPC(D)30/ 35-X3	CPC(D)- 30/35-W1	CPC(D)30/ 35-W2
		Model			ISUZU C240PKJ	ISUZU HJ493	XINCHAI 490BPG	XINCHAI 495BPG	ISUZU C240PKJ	ISUZU 4JG2
		Rated output		kw/rpm	34.5/2500	39/2500	37/2650	42/2650	34.5/2500	44.9/2450
		Rated torque		N.m/rpm	139/1800	165/1800	148/1900	174/ 1800-2000	139/1800	186.3/ 1600-1800
		No.of cylinder			4	4	4	4	4	4
		Bore × stroke		mm	86*102	92*93	90*100	95*105	86*102	95.4*107
		Displacement		L	2.369	2.771	2.54	2.98	2.369	3.059
