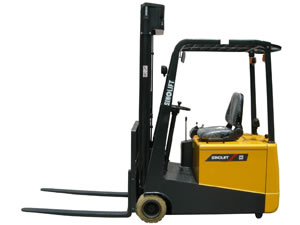

CPD-F Mini Electric Forklift

Characteristic:
The distinctive features of the new CPD-F series electric three-wheel forklift feature: * DC motor,
* Tight small and flexible structure,
* Driving with seat is comfortable and convenient,
* Safe braking is reasonable and reliable,
* It is suitable for small tonnage and small occasion,
* No pollution and no noise

SPECIFICATIONS:
1) Rated capacity (kg): 500, 750, 1000, 1500
2) Max. lifting height (mm): 3000, 4000, 4500, 4800, 5400
3) Controller model: American CURTIS

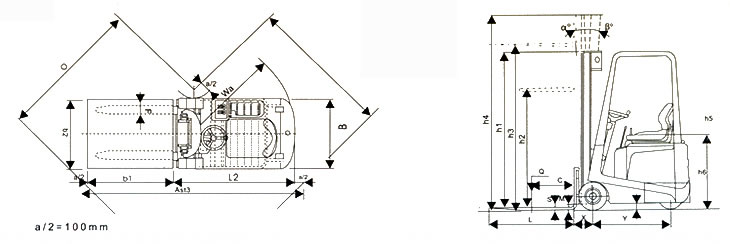

CPD-F series 3-fulcrum mini electric forklift (3-wheeled )

Model		CPD-0.5F	CPD-0.75F	CPD-1.0F	CPD-1.5F
Capacity Q	kg	500	750	1000	1500
Load Center ©	mm	400 (500)	400 (500)	400 (500)	500
Lifting Height h3	mm	3200	3200	3200	3000
Free Lifting Height h2	mm	1600	1600	1600	1500
Fork Length	mm	800 (1000)	800 (1000)	800 (1000)	1000 (1150)
Fork Sideswith	mm	100	100	100	100
Type of Lifting		Electric Hydralic
Speed of Lifting	mm/sec	>200	>200	>200	>230
Speed of Lowering	m/min	adjustable
Title of mast α/β	<	2° /5°	2° /5°	2° /5°	2° /5°
Height of Mast Lowered h1	mm	2080	2080	2080	2180
Height of Mast Extended h4	mm	3680	3680	3680	3780
Height of Overhead Guard	mm	1900	1900	1900	1980
Height of Seat from Ground	mm	850	850	850	900
Length of the face of fork	mm	1260	1260	1350	1738
Overallwidth	mm	800	800	800	1018
Thread (Front wheel)	mm	860	860	950	853
Thread (Rear wheel)	mm	940	940	1030	1188
Wheelbase	mm	660	660	660	740
Ground Clearance	mm	90	90	90	90
Turing Radius	mm	1150	1150	1240	1500
Min. Right angle aisle width	mm
Steering System		Hydraulic	Hydraulic	Hydraulic	Hydraulic
Type of Drive		Electric Motor
Drive speed(load/unload)	km/h	6.5/7.8	6.3/7.3	6.0/7.0	6.0/7.0
Speed Control		MOFSET
Gradeability	%	8	8	8	8
Driving brake		Hydraulic Brake System
Parking brake		Hand Brake
Battery	24v	D-210	D-280	D-385	D-400
Weight of battery	kg	240	320	390	420
Weight of truck	kg	1250	1380	1550	2650
Driving Motor	kw	3
lifting motor	kw	5
Wheel (front/rear)		Solid Rubber
Dimension of Front Wheel		φ267x127x165.1	φ267x127x165.1	φ267x127x165.1	φ330x127x165.1
Dimension of Drive Wheel		φ267x127x165.1	φ267x127x165.1	φ267x127x165.1	φ330x127x165.1

Remark:
1. Special lifting height available.
2. Attachment available.
3. The specification in the table are for standard models only . For further information ,please contact us.
