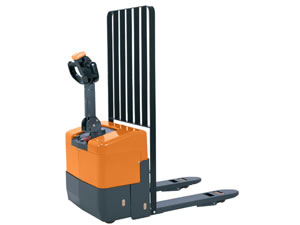

SWP13/SWP15 Walkie Power Pallet Truck

24volt Curtis fully programmable transistor control which provides smooth safe operation that can be tailored to your specific use and environment
Ergonomic handle with reversing switch, horn and dual "butterfly" thumb controls
Rechargeable battery pack and external SCR charger
Electromagnetic disk brake connected directly to the drive shaft

Battery discharge indicator with hour meter
Heavy duty pump motor with relief valve prevents system overloading
One piece power head cover providing excellent maintenance access
Key switch to limit access to approved personnel

Characteristic	Model	unit	SWP13-AC-EPS	SWP15-AC-EPS
	Rated capacity	Q (kg)	1300	1500
	Power type		Electric
	Type of operation		Pedestrian
	Load center distance	c(mm)	600
	Wheelbase	y(mm)	1222/1272
Wheel	Tire type		PU
	Wheels, number (Driving wheel/Balance wheel/Loading wheel)		1D+2B+4L
Dimensions	Overall height(with handle)	h14 (mm)	1250
	Overall length	l1 (mm)	1670/1720
	Overall width	b1 (mm)	724
	Max lifting travel	h3(mm)	110
	Min fork ground clearance	h13 (mm)	85
	Fork thickness	s(mm)	44
	Fork width	e(mm)	160
	Fork length	L(mm)	1150/1200
	Standard fork ouside width	b5 (mm)	540/685
	Min turning radius(pedal folding/unfolding)	Wa(mm)	1285/1335
	Min Working aisle width pallet lengthwise(800*1200)	Ast (mm)	2055
	Min Working aisle width pallet lengthwise(1000*1200)	Ast (mm)	2145
Performance	Travel speed, laden/unladen	km/h	3.0/3.5
	Lift speed, laden/unladen	mm/s	50/60
	Lowering speed, laden/unladen	mm/s	50/40
	Gradeability, laden/unladen	%	5月7日
	Brake		electromagnetic/regenerative braking
Motor	Drive motor	KW	DC0.6
	Lifting motor	KW	DC0.8
	Battery voltage/capacity	V/ Ah	24/70
Weight	Battery weight	kg	48
	N.W (including battery)	kg	284
