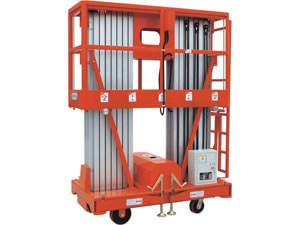

GTWY-2000 Aerial Work platform

General Information:
Suitable for 1-2 person to work upraised with better loading capacity;
Two masts are descended or ascended synchronously;
Entire lifting unit with guardrail offers such high intensity and convenient installation and disassembling that it could complete assembling or disassembling through lifting only once;
Easy maneuvering and with straddle legs similar to that of single mast aerial work platform;
Conforms to CE;
Available accessories: mast stand, auxiliary for step use, side-sheer unit;
Power Supply: Single phase AC as standard;DC or both AC as option.

Model No.			GTWY6-2000	GTWY8-2000	GTWY10-2000	GTWY12-2000
Mast			Dual Mast
Max. Platform Height		mm	6000	8000	10000	12000
Max. Machine Height		mm	7050	9050	11050	13050
Min. Platform Height		mm	1800	1800	1800	2020
Ground Clearance		mm	80	80	80	80
Lift Rated Capacity		kg	300	300	250	200
Platform Size		mm	1210×600	1210×601	1450×600	1450×601
Outspread Size		mm	1880×1760	1880×1761	2220×1960	2250×2570
Electrical Source	AC	v	220-240	220-241	220-242	220-243
Electrical Source	DC	v	12	12	12	12
Aneroid Battery		V/Ah	2×12/75	2×12/76	2×12/77	2×12/78
Charger		V/A	12/15	12/16	12/17	12/18
Lifting Motor	AC	V/kw	220/0.75-1.5	220/0.75-1.6	220/0.75-1.7	220/0.75-1.8
Lifting Motor	DC	V/kw	12/2.5	12/2.6	12/2.7	12/2.8
Overall Length		mm	1560	1560	1790	1790
Overall Width		mm	840	840	840	890
Overall Height		mm	1810	1810	1810	2030
Overall	AC	Kg	570	630	730	825
Net Weight	DC	kg	610	670	770	865
