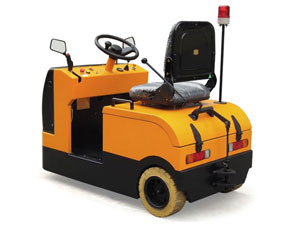

QD-50BH 5T Electric towing tractor

This QD-BH u is updated version from QD-B with rear driven system.

Safe automotive controls and steering wheel eliminate hand injuries and carpal tunnel syndrome hazards associated with twist grip controls.

This tractor truck uses stepless speed regulating system controlled by MOS tube and is highly efficient and energy saving.

It is comfortable for the operator to drive this truck.

Characterized by high carrying capacity, this tractor truck is an important carrier for conveying luggage or cargoes in airports, railway stations, factories, and postal services, etc.

Model No.			QD-20BH	QD-30BH	QD-30BH(AC) **
Towing Capacity	kg		2000	3000	3000
Driving Motor	W		DC-24V-2000W	DC-24V-2000W	DC-24V-2200W AC
Battery			D-240A 24V	D-300A 24V	D-300A 36V
Driving Speed	km/h		0~6.5	0~6.5	0~7.5
Controller Type			CURTIS solid-state speed	CURTIS solid-state speed	C3-250A
Working Time	Hours		6	6	6
Min. Turning Radius	mm	R	1000	1850	1850
Operation Type			Rider seated	Rider seated	Rider seated
Min.under-clearance	mm		85	85	85
Steering Wheel	mm		White Rubber Φ267x127	White Rubber Φ267x76	White Rubber Φ267x76
Drive Wheel	mm		Φ330x165	Φ330x114	Φ330x114
Overall length	mm	L	1490	1700	1700
Overall width	mm	W	820	800	800
Overall height	mm	H	1350	1240	1240
Service Weight	kg		1150	1450	1580
